On-Vehicle Service: Calibration: Notes

Calibrate according to the procedure below after the following operation is performed:

• Replacement of the camera-ECU
• Removal and installation/replacement of a camera
• Any of the door or the liftgate, Outside rear-view mirror assembly (LH), (RH) is aligned.
• The front bumper center cover is deformed or loosened due to a collision accident.

Fig 1: Camera-ECU Calibration Flow Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

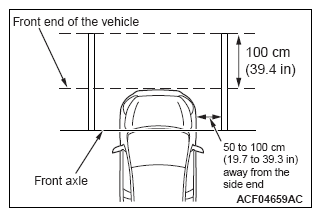

Fig 2: Checking Image Dimension From Front View Camera

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
