Removal And Installation

Pre-removal and post-installation operation

• Transmission range switch and control cable adjustment check (Refer to TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT .)
• Selector lever operation check (Refer to ELECTRONIC CONTROL COUPLING SOLENOID (FRONT) CHECK <VEHICLES WITH S-AWC> .)

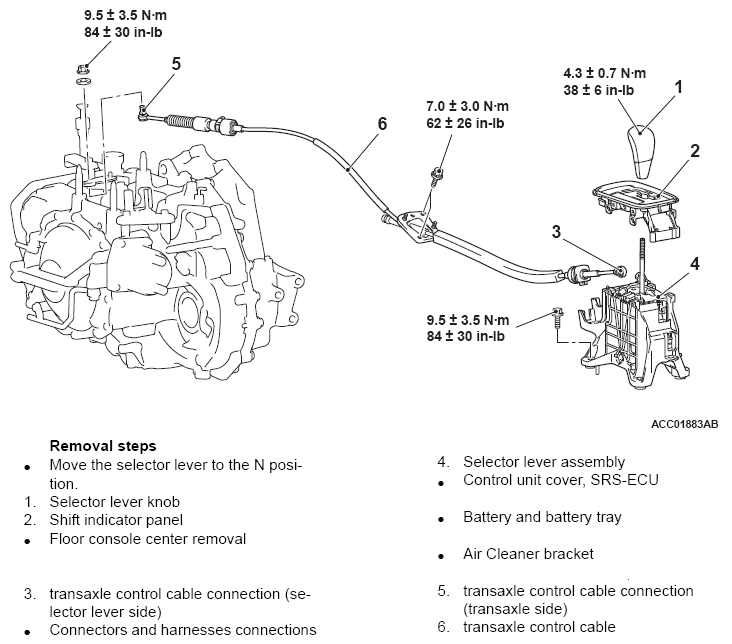

Fig 1: Removing/Installing Transaxle Control Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
