Transmission Range Switch Check

Selector lever position	Terminal connection of tester	Specified condition
P	3 - 2, 7 - 10	Continuity exists (2 Ω or less).
P	Other than above	No continuity
R	3 - 9	Continuity exists (2 Ω or less).
R	Other than above	No continuity
N	3 - 8, 7 - 10	Continuity exists (2 Ω or less).
N	Other than above	No continuity
D	3 - 5	Continuity exists (2 Ω or less).
D	Other than above	No continuity
L	3 - 1	Continuity exists (2 Ω or less).
L	Other than above	No continuity

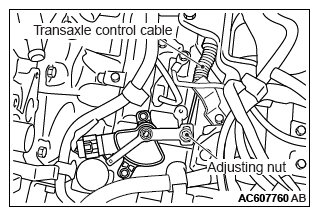

Fig 1: Locating Transaxle Control Cable With Adjusting Nut

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

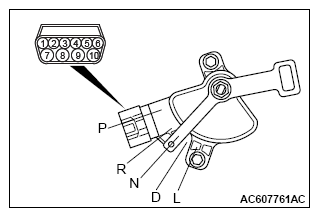

Fig 2: Locating Transmission Range Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
