Solenoid Valve Check

Disconnect the A/T control solenoid valve assembly connector.

Measure the resistance between the terminals of the applicable solenoid valves and terminal No. 13.

Standard value:

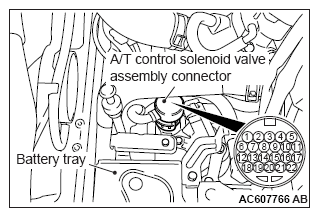

Fig 1: Disconnecting A/T Control Solenoid Valve Assembly Connector

G12119795

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Applicable solenoid valve	Resistance value Ω
1	Low clutch linear solenoid valve	Approximately 5.3 {Transmission fluid temperature: 20°C (68°F)}
4	Lock-up and low reverse brake linear solenoid valve
6	2-6 brake linear solenoid valve
9	Line pressure linear solenoid valve
14	3-5 reverse clutch linear solenoid valve
19	High clutch linear solenoid valve
17	Low-reverse brake shift solenoid valve	Approximately 28 {Transmission fluid temperature: 20°C (68°F)}
22	Low clutch shift solenoid valve

When the resistance is within the standard value, check the power supply and the ground circuits.
CAUTION: Each solenoid valve cannot be removed or replaced as a single unit. When replacement of any one of the solenoid valves is necessary, replace the valve body assembly.
When the resistance is outside the standard value, replace the valve body assembly and the harness.
