Disassembly And Reassembly

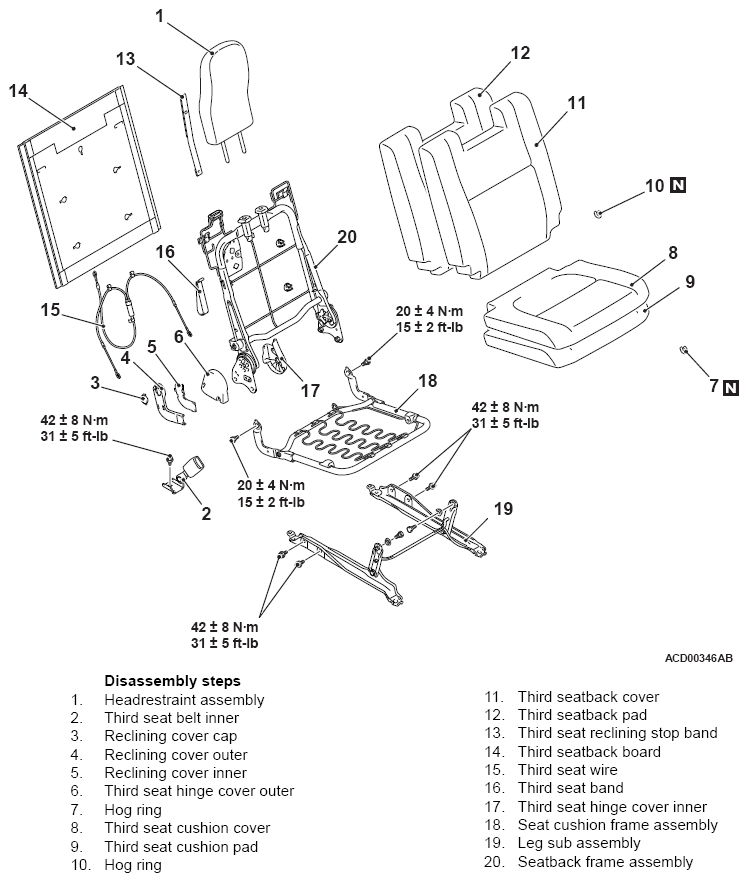

Fig 1: Disassembling/Assembling Third Seat Assembly Components With Torque Specification

G12127372

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
