Notes
Removal And Installation: Notes
Pre-removal operation
Engine Room Under Cover Front A, B Removal (Refer to
REMOVAL AND INSTALLATION
).
Transmission Fluid Draining (Refer to
TRANSMISSION FLUID CHANGE
).
Post-installation operation
Engine Room Under Cover Front A, B Installation (Refer to
REMOVAL AND INSTALLATION
).
Transmission Fluid Refilling (Refer to
TRANSMISSION FLUID CHANGE
).

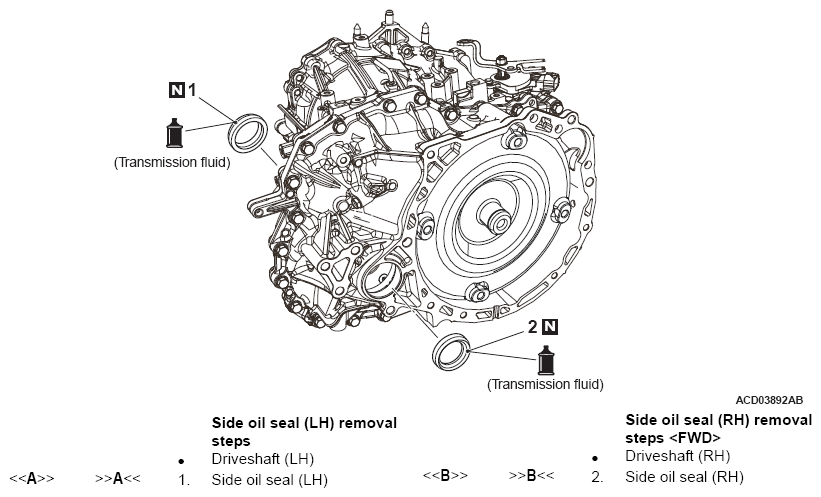

Fig 1: Removing/Installing Oil Seal Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
