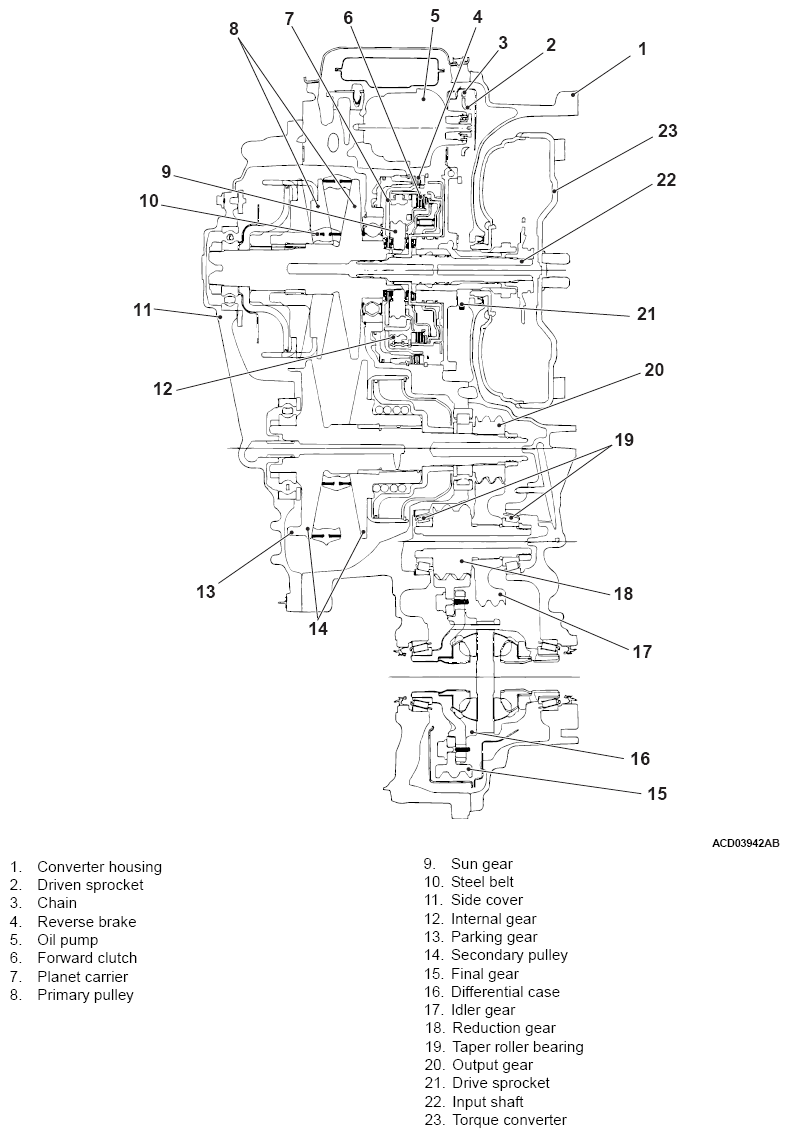

SECTIONAL VIEW
Fig 1: Sectional View Of CVT
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
