Removal And Installation: Notes

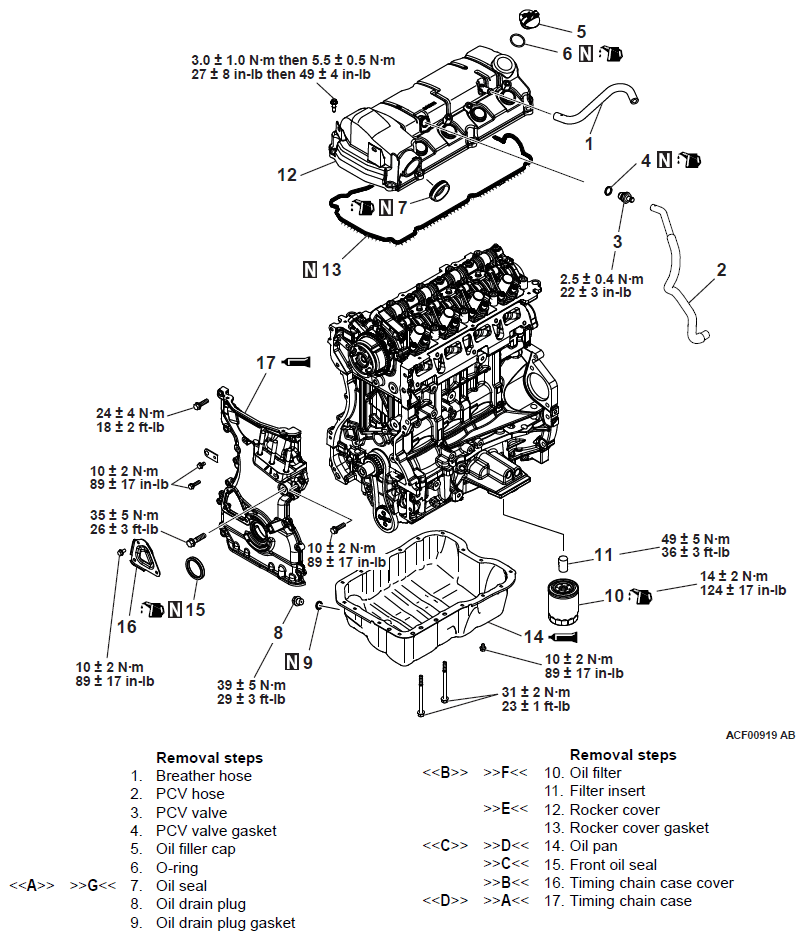

Fig 1: Removing/Installing Oil Pan And Timing Chain Case Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB991396: Oil filter wrench
• MD998727: Oil pan FIPG cutter
• MB991448: Crankshaft front oil seal installer
• MB992163: Oil seal installer
• MB992075: Handle
