Removal And Installation: Notes

Pre-removal Operation

Front under cover panel and front extension under cover panel removal. Refer to REMOVAL AND INSTALLATION ).
Engine coolant draining Refer to ENGINE COOLANT REPLACEMENT <2.4 L ENGINE> < 2.4 L Engine > or ENGINE COOLANT REPLACEMENT <3.0 L ENGINE> < 3.0 L Engine >).
Air cleaner intake duct and air cleaner assembly removal (Refer to AIR CLEANER < 2.4 L Engine > or P.15-7 < 3.0 L Engine >).
Headlight support upper panel cover (Refer to REMOVAL AND INSTALLATION )

Post-installation Operation

Headlight support upper panel cover (Refer to RADIATOR GRILLE )
Air cleaner intake duct and air cleaner assembly installation (Refer to AIR CLEANER < 2.4 L Engine > or < 3.0 L Engine >).
Engine coolant draining Refer to ENGINE COOLANT REPLACEMENT <2.4 L ENGINE> < 2.4 L Engine > or ENGINE COOLANT REPLACEMENT <3.0 L ENGINE> < 3.0 L Engine >).
Front under cover panel and front extension under cover panel installation (Refer to REMOVAL AND INSTALLATION ).

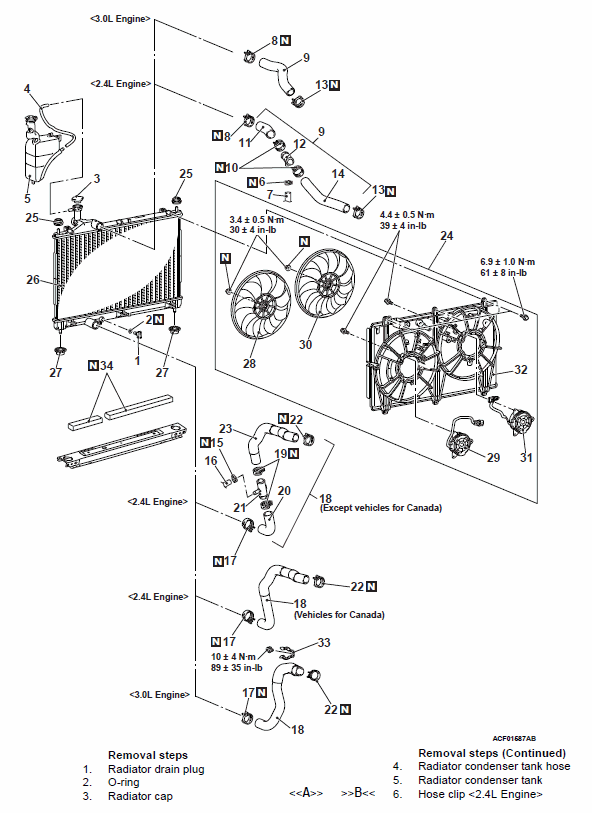

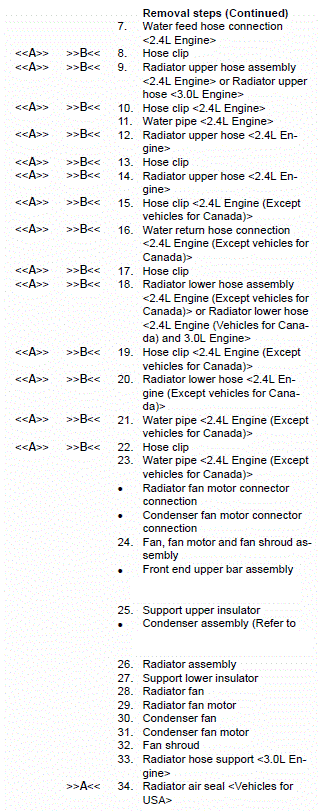

Fig 1: Exploded View Of Radiator With Torque Specification (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View Of Radiator With Torque Specification (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
