REMOVAL AND INSTALLATION <2.4L Engine>: Notes

Pre-removal Operation  Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Removal (Refer to REMOVAL AND INSTALLATION ). Drive Belt Removal (Refer to CRANKSHAFT PULLEY ).

Post-installation Operation  Drive Belt Installation (Refer to CRANKSHAFT PULLEY ). Drive Belt Tension Check (Refer to DRIVE BELT TENSION CHECK ). Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Installation (Refer to REMOVAL AND INSTALLATION ).

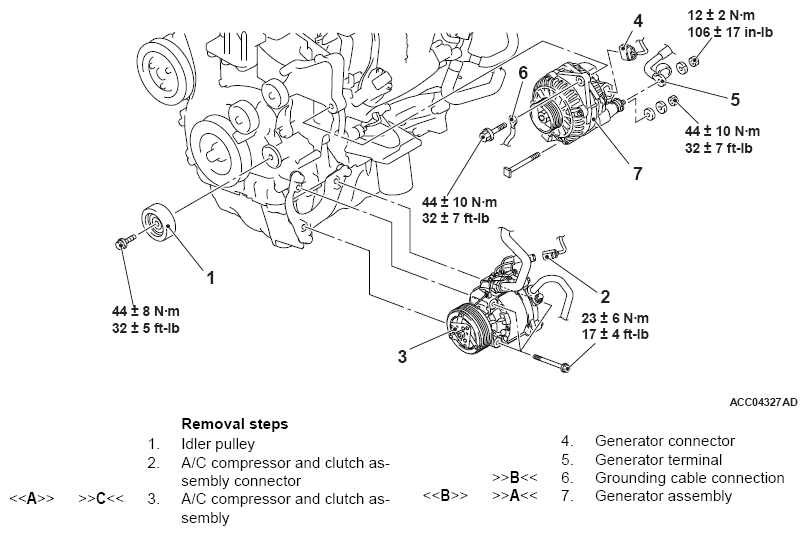

Fig 1: Removing/Installing Generator Assembly Components With Torque Specifications (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
