INSPECTION <3.0L Engine>: Stator

1. Check the continuity between coil leads.

   If there is no continuity, replace the stator.

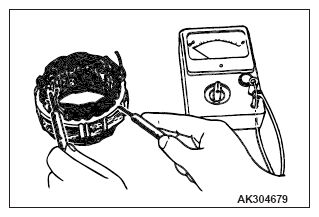

   Fig 1: Checking Continuity Between Coil Leads

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Check the continuity between coil and core.

If there is continuity, replace the stator.

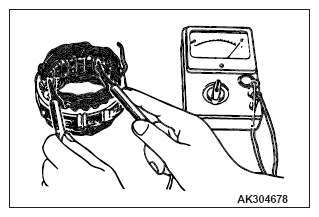

Fig 2: Checking Continuity Between Coil And Core

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
