INSPECTION <2.4L Engine>: Brush

Measure the length of the protrusion of the brush. Replace the brush if the protrusion length is shorter than the limit.
Limit: Minimum 2 mm (0.1 inch) .
Unsolder the lead of the brush. The brush will come out, becoming ready for removal.

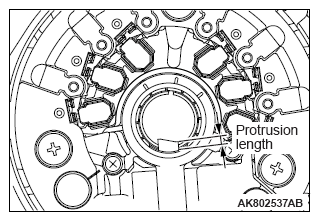

Fig 1: Measuring Protrusion Length Of Brush
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install a new brush by pushing it into the holder as shown in the illustration and soldering the lead.

Fig 2: Locating Solder

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
