Power Window Main Switch Terminal Check

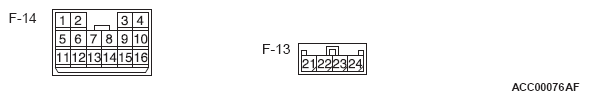

<F-14>
| Terminal No. | Terminal code | Check item | Check condition | Normal condition |
|---|---|---|---|---|
| 1 | D.AS | Output to power window motor (Passenger's side) | The front passenger's window lowers | System voltage |
| The front passenger's window rises | 1 V or less | |||
| 2 | U.AS | Output to power window motor (Passenger's side) | The front passenger's window rises | System voltage |
| The front passenger's window lowers | 1 V or less | |||
| 3 | MD | Output to power window motor (Driver's side) | The driver's window lowers | 1 V or less |
| The driver's window rises | System voltage | |||
| 4 | MU | Output to power window motor (Driver's side) | The driver's window rises | 1 V or less |
| The driver's window lowers | System voltage | |||
| 5 | +BP | Power supply | Always | System voltage |
| 6 | SEN1 | Input from power window motor (pulse sensor signal) | When the power windows are operating | 0 to 5 V (pulse signal) |
| 7 | SGND | Input from power window motor (pulse sensor ground) | - | 1 V or less |
| 8 | E.DL | Ground | Always | 1 V or less |
| 9 | VCC | Input from power window motor (power supply to pulse sensor) | When the power windows are operating | 5 V |
| 10 | +B | Power supply | Ignition switch: ON | Battery positive voltage |
| 11 | D.RR | Output to power window motor (Rear right side) | The rear right window lowers | System voltage |
| The rear right window rises | 1 V or less | |||
| 12 | U.RR | Output to power window motor (Rear right side) | The rear right window rises | System voltage |
| The rear right window lowers | 1 V or less | |||
| 13 | SEN2 | Input from power window motor (pulse sensor signal) | When the power windows are operating | 0 to 5 V (pulse signal) |
| 14 | - | - | - | - |
| 15 | D.RL | Output to power window motor (Rear left side) | The rear left window lowers | System voltage |
| The rear left window rises | 1 V or less | |||
| 16 | U.RL | Output to power window motor (Rear left side) | The rear left window rises | System voltage |
| The rear left window lowers | 1 V or less |
<F-13>
| Terminal No. | Terminal code | Check item | Check condition | Normal condition |
|---|---|---|---|---|
| 21 | - | - | - | - |
| 22 | D-LS | Output to door unlock signal | The central door lock switch is unlocked | 1 V or less |
| The central door lock switch is turned off | 0V | |||
| 23 | D-US | Output to door lock signal | The central door lock switch is locked | 1 V or less |
| The central door lock switch is turned off | 0V | |||
| 24 | - | - | - | - |
