Home >> Mitsubishi >> 2017 >> Outlander ES, AWD >> Repair and Diagnosis (Single Page) >> Engine Performance >> Ignition System >> Engine Overhaul - 2.4L >> Timing Chain >> Removal And Installation >> Notes

Removal And Installation: Notes

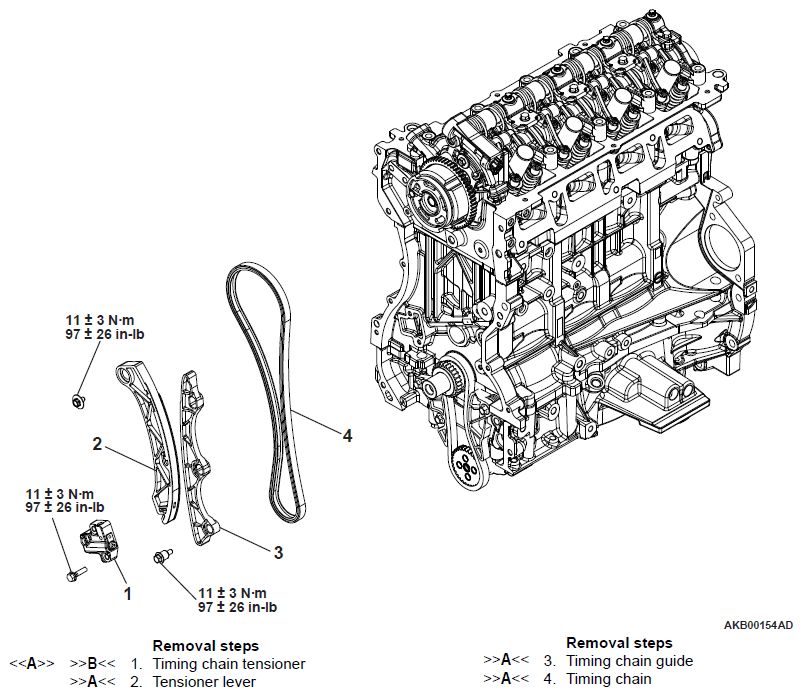

Fig 1: Removing/Installing Timing Chain Components With Torque Specifications
G12117736Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
