Mitsubishi
>>
2017
>>
Mirage SE, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Window Glass
>>
Windshield
>>
Removal And Installation
Removal And Installation
Pre-removal and post-installation operation
Front Deck Garnish Removal and Installation (Refer to
WINDSHIELD WIPER
).
Front Pillar Trim Removal and Installation (Refer to
INTERIOR TRIM
).
Inside Rear View Mirror Removal and Installation

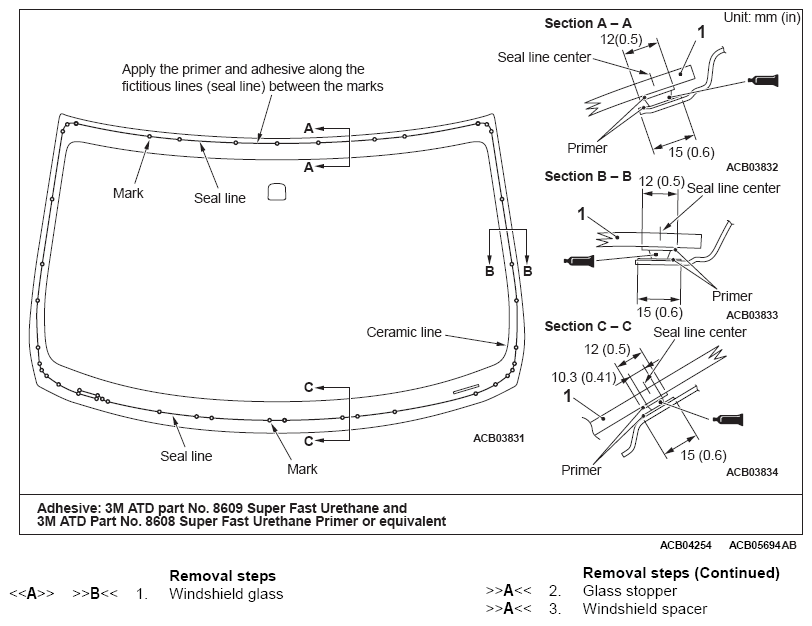

Fig 1: Windshield Components (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Windshield Components (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
