Notes
Removal And Installation: Notes
Pre-removal Operation
Engine Room Under Cover Front Removal (Refer to - Under Cover
REMOVAL AND INSTALLATION
).
Post-installation Operation
Engine Room Under Cover Front Installation (Refer to - Under Cover
REMOVAL AND INSTALLATION
).

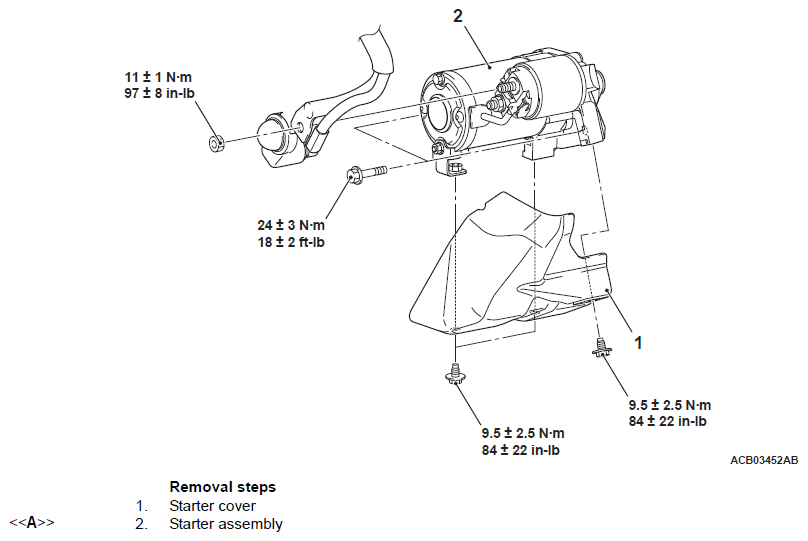

Fig 1: Removing/Installing Starter Motor Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
