Removal And Installation: Notes

Pre-removal and Post-installation operation  Front Bumper and Radiator Grille Assembly Removal and Installation (Refer to REMOVAL AND INSTALLATION).

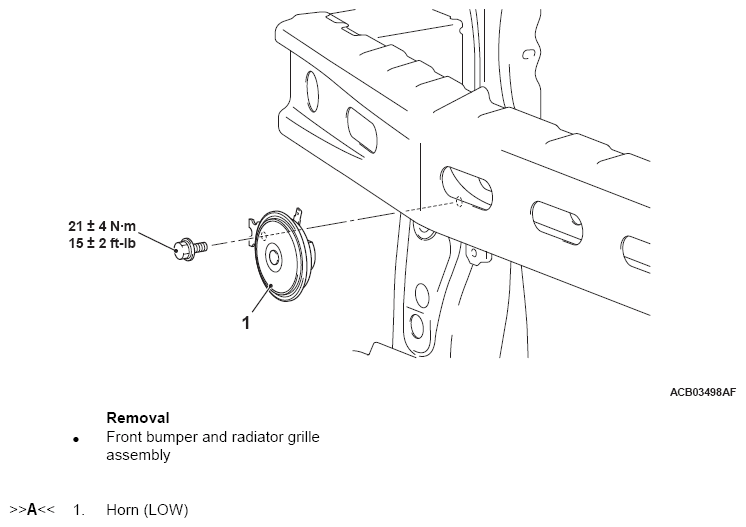

Fig 1: Horn Installation/Removal With Torque Specifications
G11460671Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
