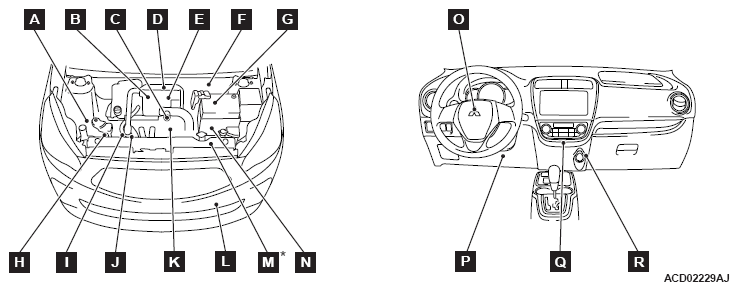

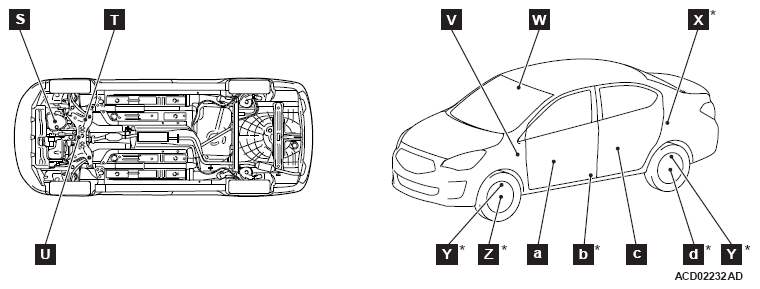

Component Locations: Sensor

Name	Symbol

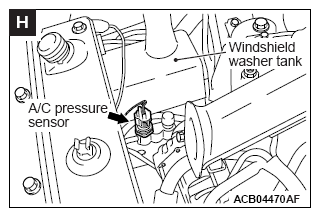

A/C pressure sensor	H
Accelerator pedal position sensor	P
Ambient temperature sensor	L

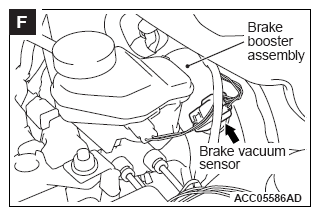

Brake vacuum sensor	F
Camshaft position sensor	B

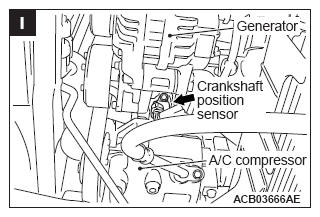

Crankshaft position sensor	I

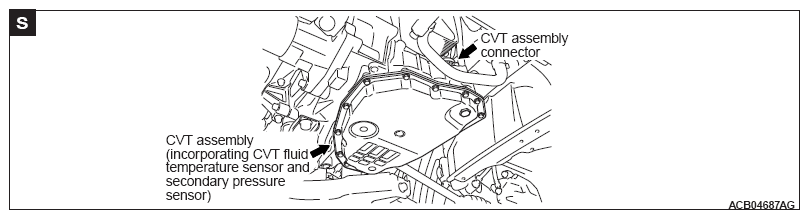

CVT assembly (incorporating CVT fluid temperature sensor and secondary pressure sensor)	S

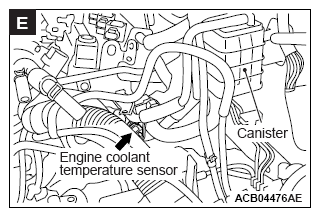

Engine coolant temperature sensor	E
Fin thermo sensor	R
Front impact sensor	M
Front light sensor <Vehicles with automatic anti-dazzling mirror>	W

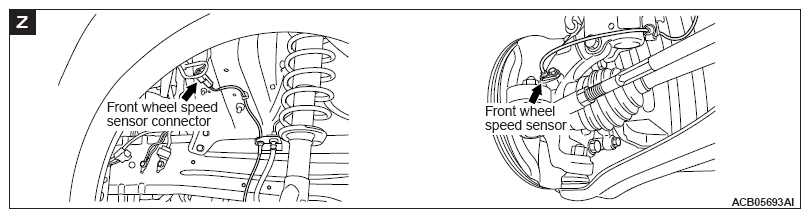

Front wheel speed sensor	Z

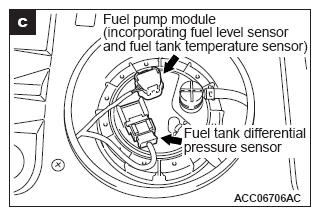

Fuel pump module (incorporating fuel level sensor and fuel tank temperature sensor)	c
Fuel tank differential pressure sensor	c

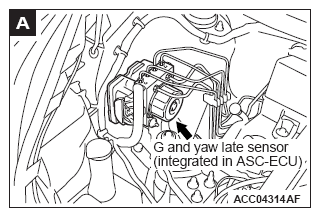

G and yaw late sensor (integrated in ASC-ECU)	A

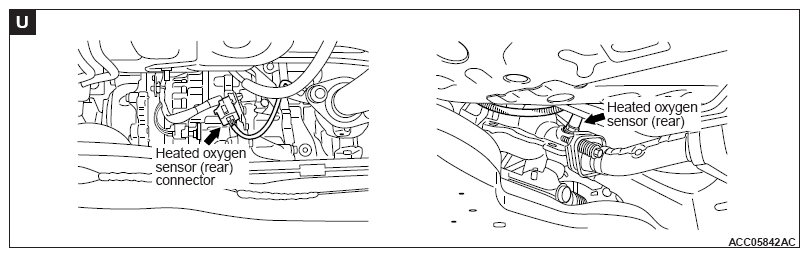

Heated oxygen sensor (rear)	U
Interior temperature sensor (integrated in auto A/C controller assembly (A/C-ECU))	Q

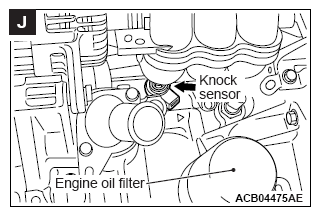

Knock sensor	J

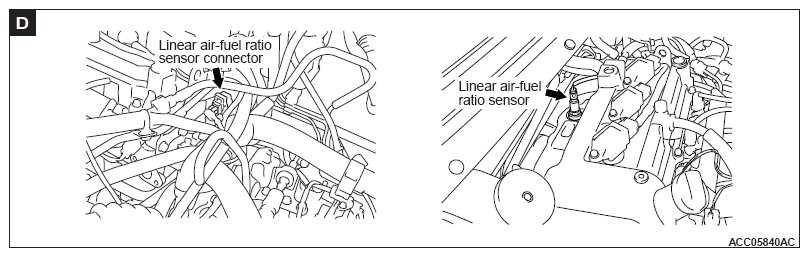

Linear air-fuel ratio sensor	D

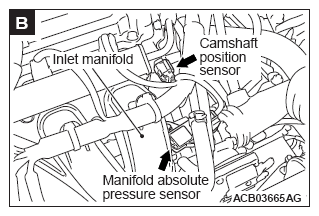

Manifold absolute pressure sensor	B

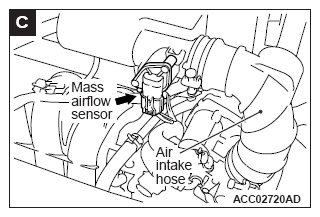

Mass airflow sensor	C
Occupant classification sensor	V

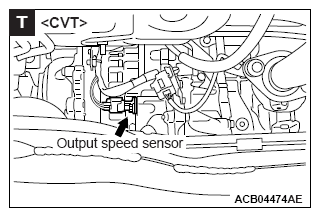

Output speed sensor <CVT>	T

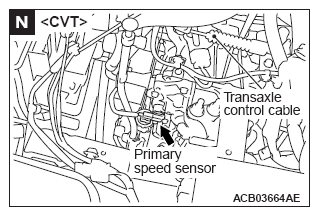

Primary speed sensor <CVT>	N
Rear light sensor <Vehicles with automatic anti-dazzling mirror>	W

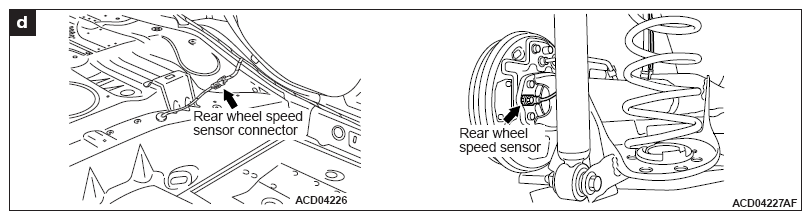

Rear wheel speed sensor	d
Seat slide sensor	a

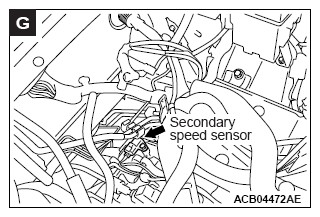

Secondary speed sensor <CVT>	G
Side impact sensor (front)	b

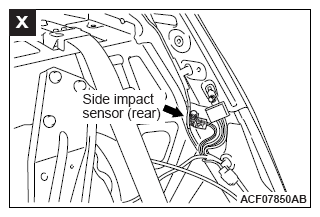

Side impact sensor (rear)	X

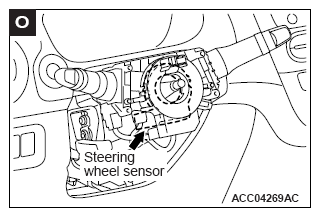

Steering wheel sensor	O

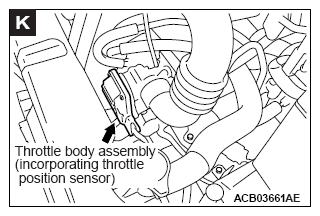

Throttle body assembly (incorporating throttle position sensor)	K
TPMS transmitter (incorporating tire pressure sensor)	Y
