Mitsubishi
>>
2017
>>
Mirage G4 ES, Standard Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Inspection Terminal
Inspection Terminal
Name
Symbol
Data link connector
E
Spare connector
B
Spare connector
C
Spare connector (for rear view camera)
D
Spare connector (for MMES)
D
Spare connector <CVT>
A
Fig 1: Inspection Terminal Locations (1 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

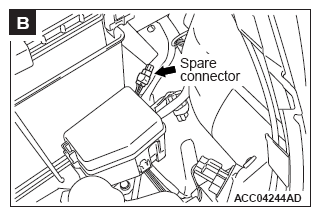

Fig 2: Inspection Terminal Locations (2 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

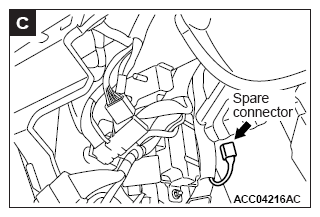

Fig 3: Inspection Terminal Locations (3 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Inspection Terminal Locations (4 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 5: Inspection Terminal Locations (5 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 6: Inspection Terminal Locations (6 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 7: Inspection Terminal Locations (7 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
