Removal And Installation: Notes

Pre-removal Operation  Post-installation Operation

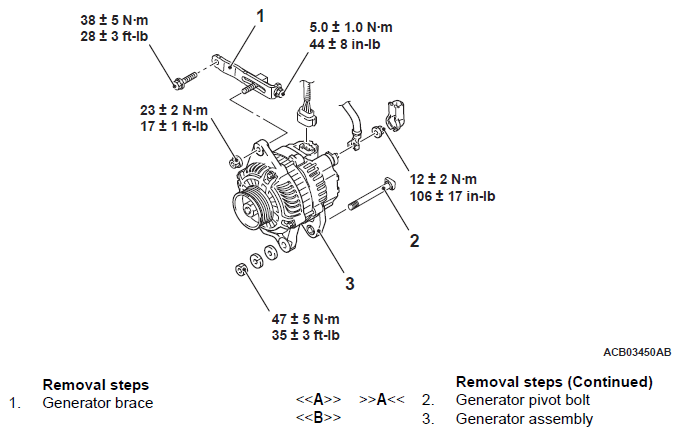

Fig 1: Removing/Installing Generator Assembly Replacement Components With Torque Specifications
G11480006Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
