Notes
Removal And Installation: Notes

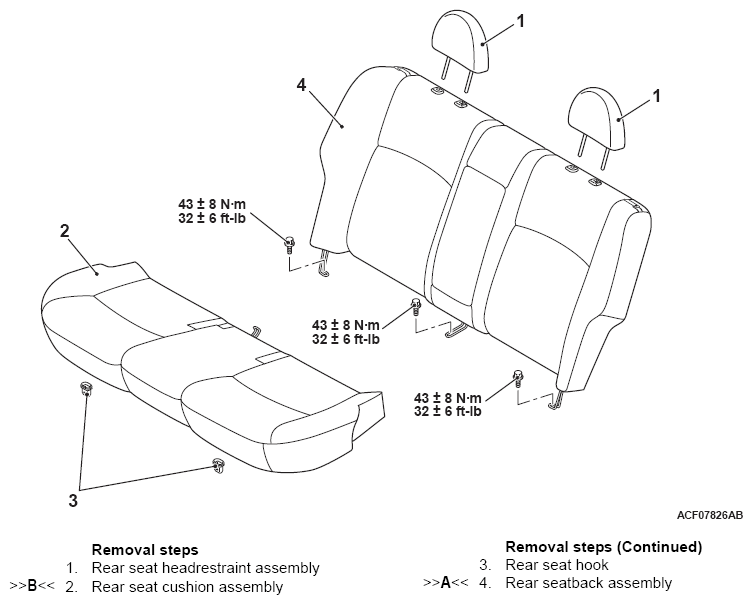

Fig 1: Removing Rear Seat Assembly With Nuts And Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
