Standard Flow Of Diagnostic Troubleshooting

WARNING: This page is about a different variant/trim than selected.

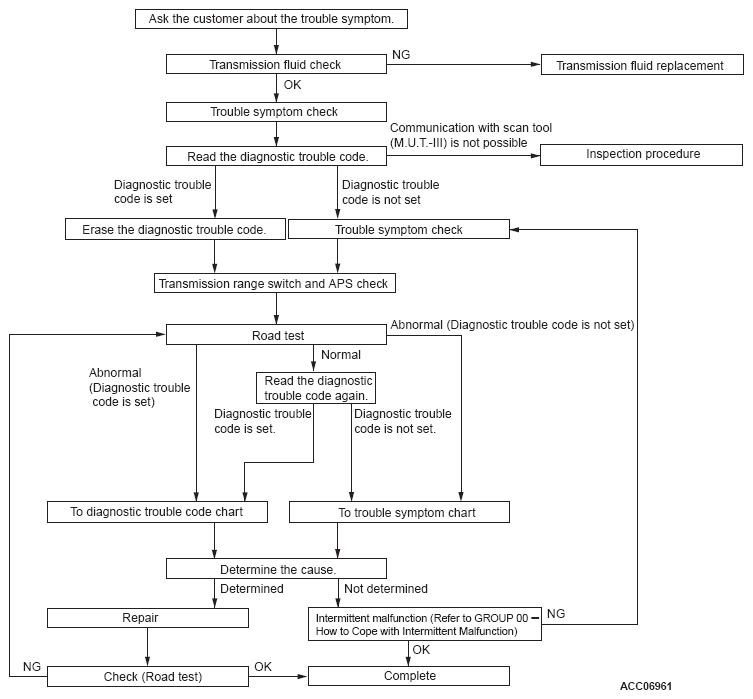

Fig 1: Diagnostic Troubleshooting Flow Chart
G11278212Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
