Removal And Installation: Notes

Pre-removal Operation

• Engine Room Under Cover Front Removal (Refer to UNDER COVER ).
• Oil Filter Removal (Refer to On-vehicle Service, Oil Filter Replacement  ).

Post-installation Operation

• Oil Filter Installation (Refer to On-vehicle Service, Oil Filter Replacement  ).
• Engine Room Under Cover Front Installation (Refer to UNDER COVER ).

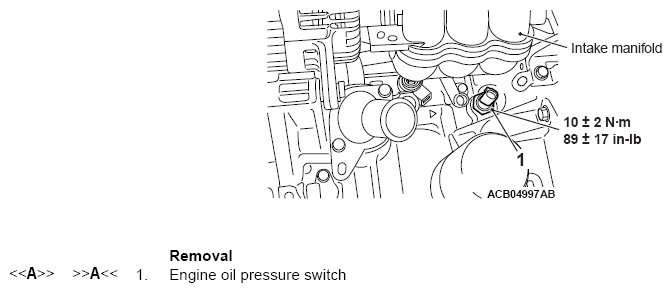

Fig 1: Engine Oil Pressure Switch Component With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
