Steering
>>
Power Steering - Lancer
>>
Steering Column Shaft Assembly
>>
Disassembly And Assembly
>>
Notes
Disassembly And Assembly: Notes

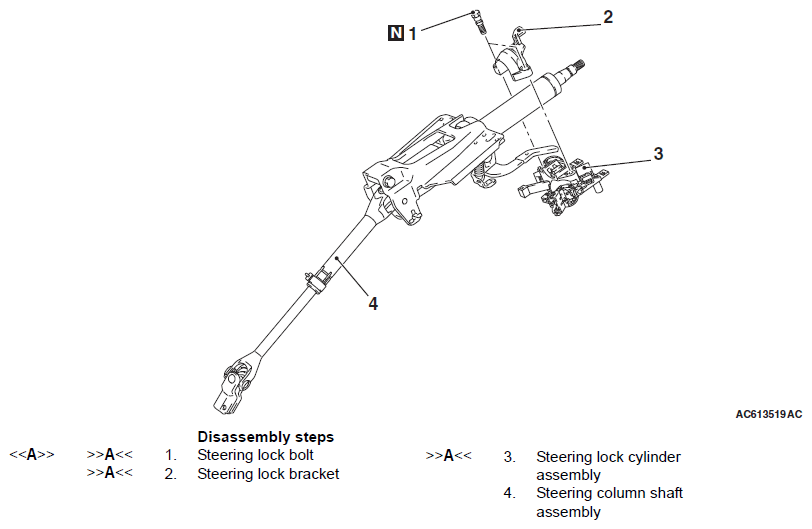

Fig 1: Disassembling/Assembling Steering Column Shaft Assembly And Steering Gear & Linkage Connection
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
