Continuously Variable Transaxle On-Vehicle Service
>>
Inhibitor Switch
>>
Removal And Installation
Removal And Installation
Pre-removal operation
Air Cleaner Assembly Removal. (Refer to
AIR CLEANER
)
Battery and Battery Tray Removal. (Refer to
BATTERY REMOVAL AND INSTALLATION
)
Post-installation operation
Battery and Battery Tray Installation. (Refer to
BATTERY REMOVAL AND INSTALLATION
)
Air Cleaner Assembly Installation. (Refer to
AIR CLEANER
)
Transmission Range Switch and Control Cable Adjustment. (Refer to
TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT
)

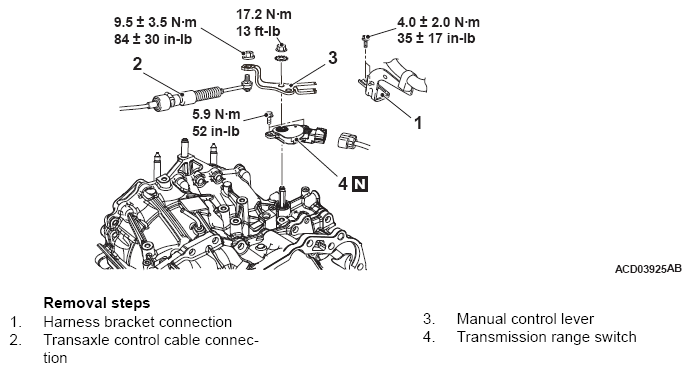

Fig 1: Removing/Installing Inhibitor Switch Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
