Removal And Installation: Notes

WARNING:

Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING < EXCEPT RALLIART > or DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART > .
When removing and installing the steering wheel, do not let it bump against the driver's air bag module.

CAUTION: After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION < Vehicles with ASC >).

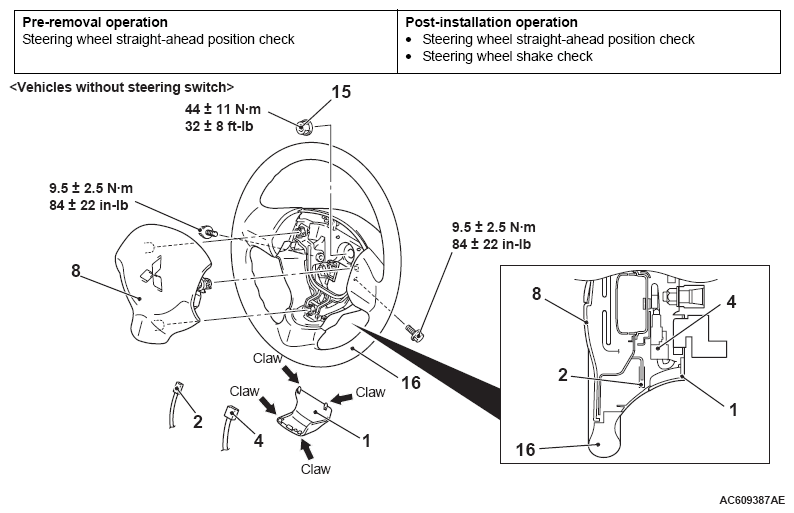

Fig 1: Removing/Installing Steering Wheel Components With Torque Specifications (Vehicles Without Steering Switch)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

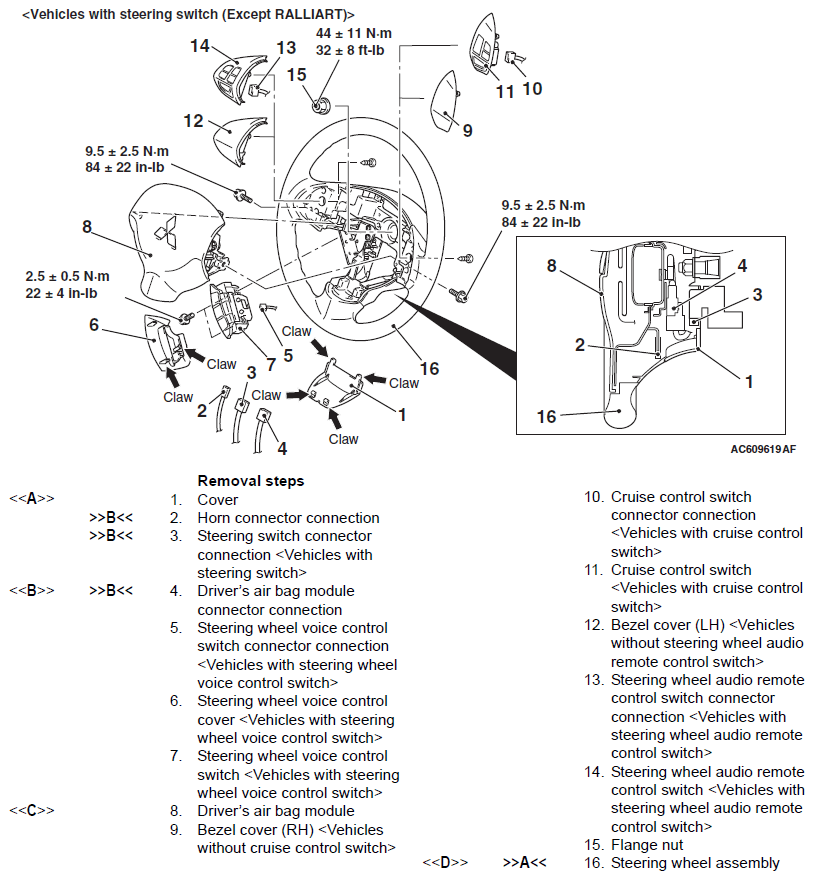

Fig 2: Removing/Installing Steering Wheel Components With Torque Specifications (Vehicles With Steering Switch; Except RALLIART)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

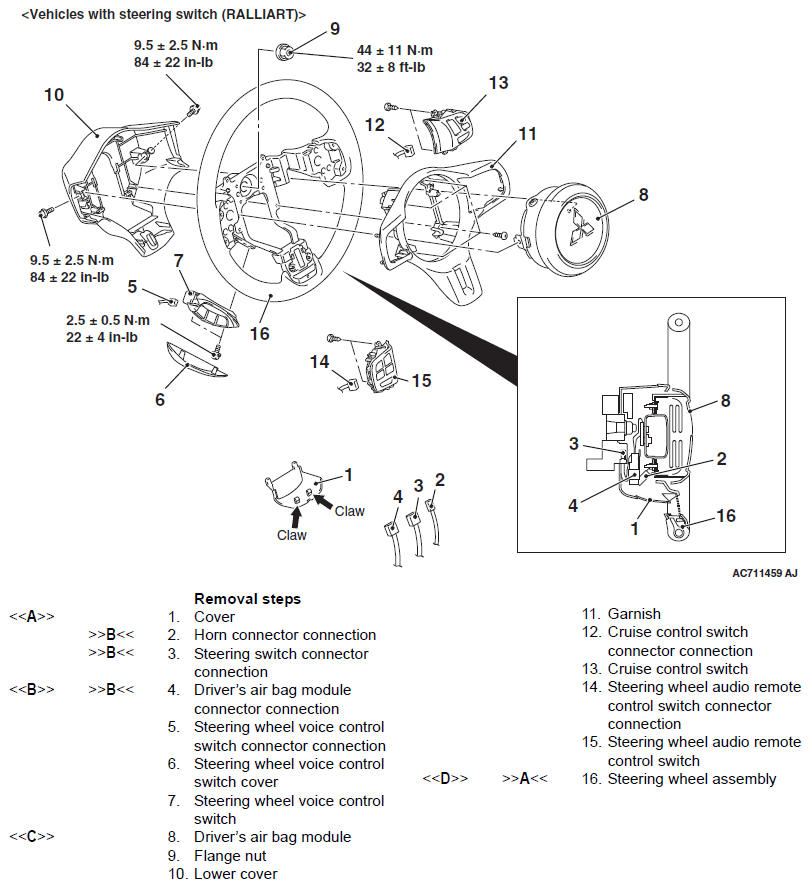

Fig 3: Removing/Installing Steering Wheel Components With Torque Specifications (Vehicles With Steering Switch; RALLIART)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990784: Ornament Remover
MB990803: Steering wheel puller
