Disassembly And Assembly: Notes

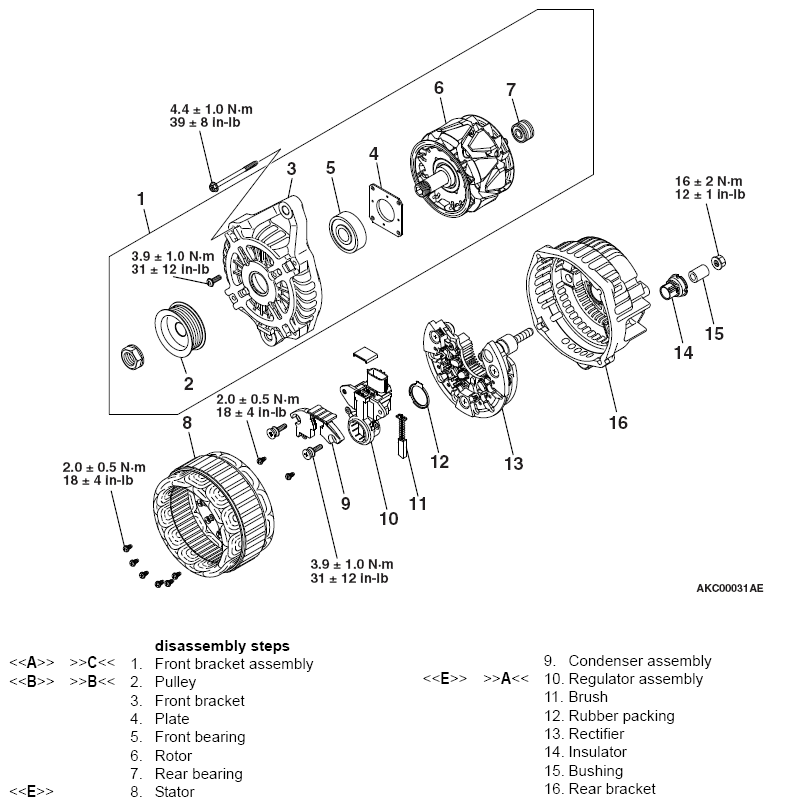

Fig 1: Disassembling/Assembling Generator Assembly Components With Torque Specification (1 Of 2)
G09625364Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

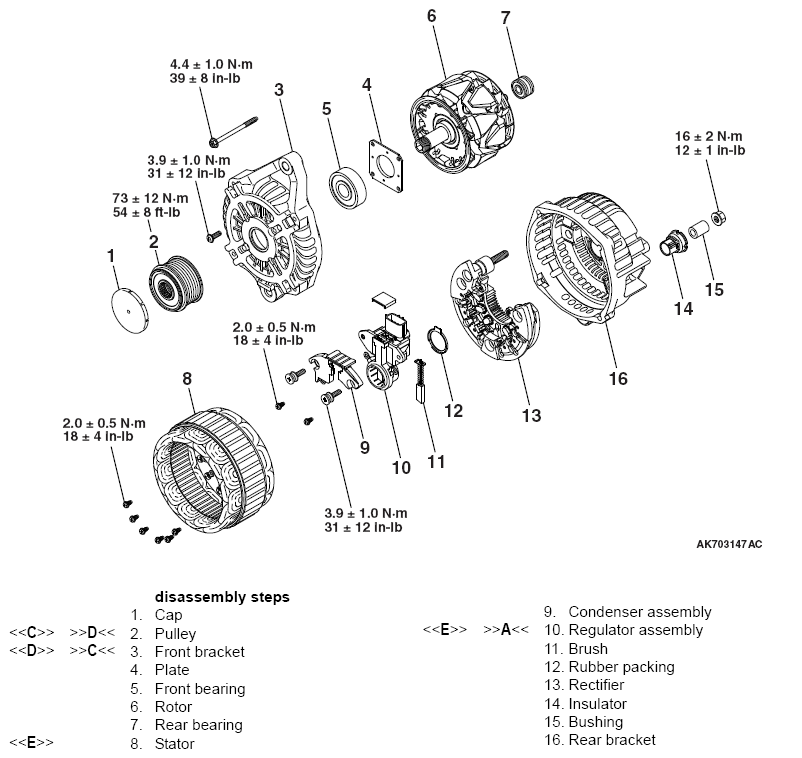

Fig 2: Disassembling/Assembling Generator Assembly Components With Torque Specification (2 Of 2)
G09625365Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
