Home >> Mitsubishi >> 2017 >> Lancer SE >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> Window Glass - Lancer >> Windshield >> Removal And Installation >> Notes

Removal And Installation: Notes

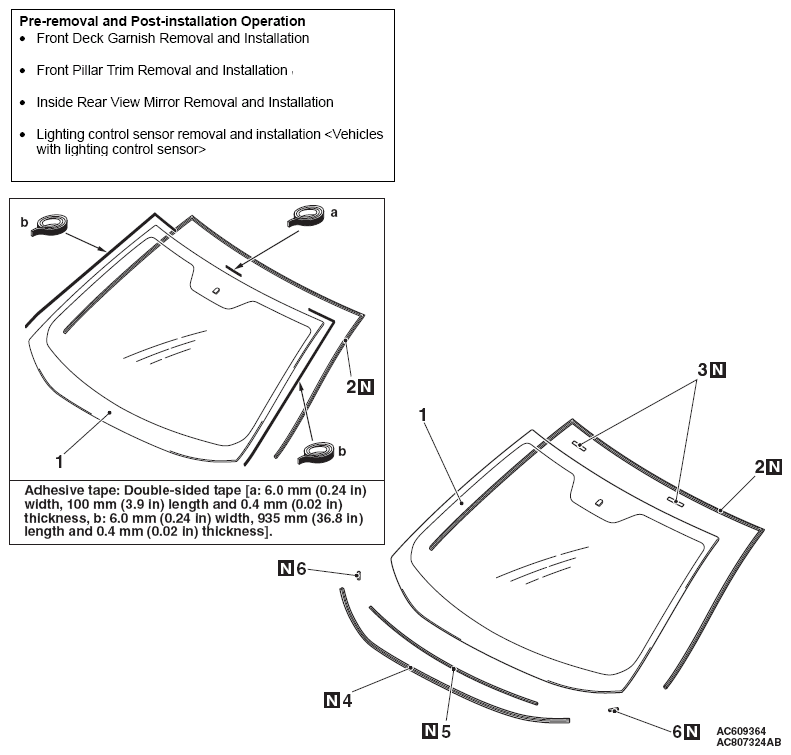

Fig 1: Removing/Installing Windshield Adhesive Tape Applying Area (1 Of 2)
G09627515Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Removing/Installing Windshield Adhesive Tape Applying Area (2 Of 2)
G09627516Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
