Home >> Mitsubishi >> 2016 >> RVR SE Limited Edition >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul - 2.4L >> Intake Manifold And Fuel System >> Removal And Installation >> Notes

Removal And Installation: Notes

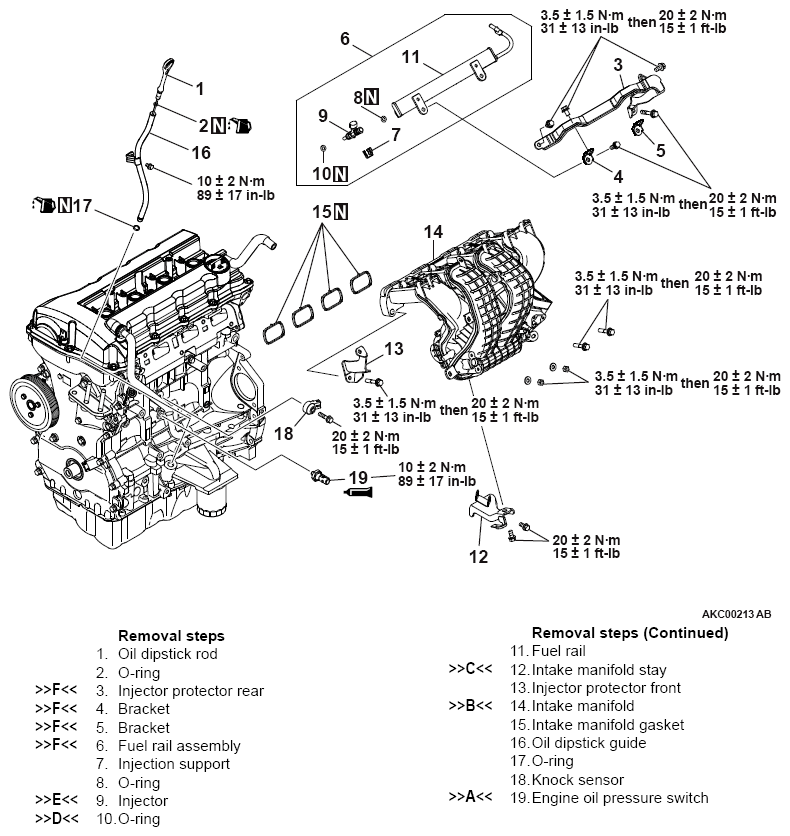

Fig 1: Identifying Intake Manifold And Fuel System Related Components With Torque Specification
G10227685Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
