Timing Chain Installation

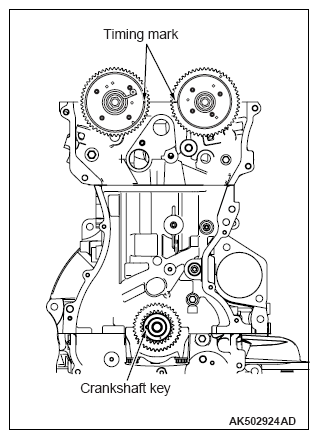

Align the timing mark of the V.V.T. sprocket.
Align the crankshaft sprocket keys with illustrated positions.

Fig 1: Identifying V.V.T. Sprocket Timing Mark
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

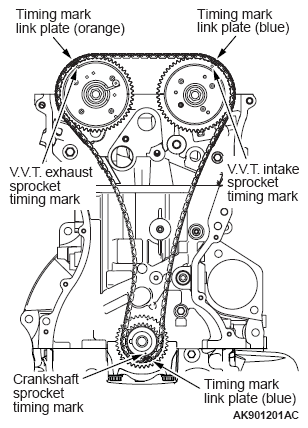

Align the link plate (Orange) with the timing mark of the exhaust V.V.T. sprocket and loop the timing chain.

Fig 2: Identifying V.V.T. Exhaust Sprocket Timing Mark
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Align the link plate (Blue) with the timing mark of the intake V.V.T. sprocket to loop the timing chain.
Rotate the intake V.V.T. sprocket by one or two teeth to align with the timing mark.

Fig 3: Aligning Link Plate With Intake V.V.T. Sprocket Timing Mark
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Align the timing mark of the crankshaft sprocket with the link plate (Blue) to loop the timing chain. Because of timing chain slacks, hold it to prevent the timing mark from coming off the link plate (Blue).

Fig 4: Identifying Crankshaft Sprocket Timing Mark
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Make sure that the timing mark of each sprocket is aligned with the link plate of the timing chain at all of three locations.
Install the timing chain guide and tensioner lever.
