Home >> Mitsubishi >> 2016 >> RVR ES, Automatic CVT Trans >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul - 2.0L >> Intake Manifold And Fuel System >> Removal And Installation >> Notes

Removal And Installation: Notes

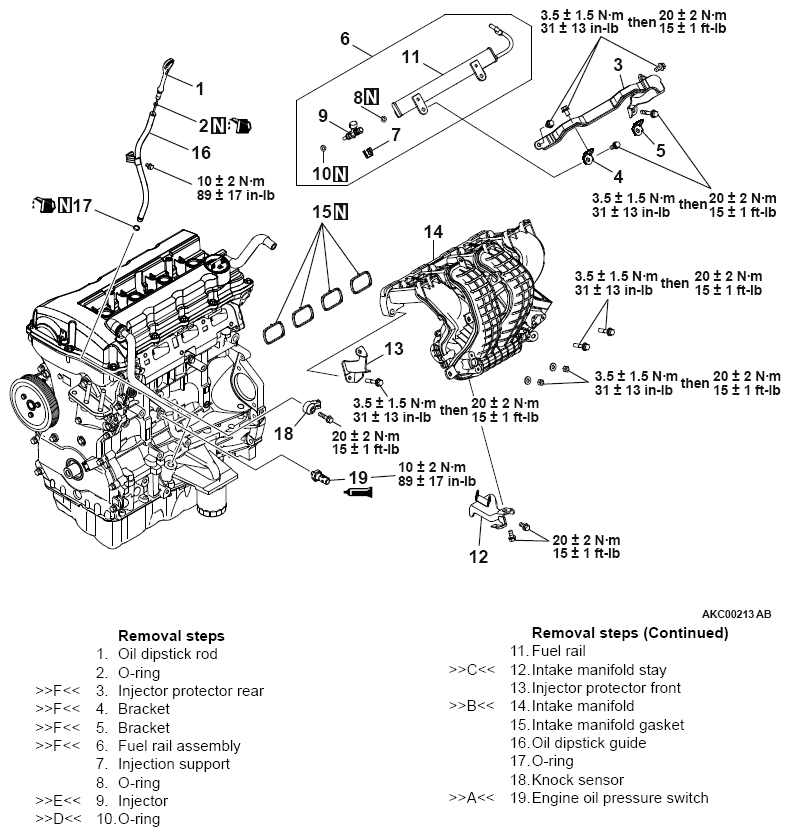

Fig 1: Removing/Installing Intake Manifold And Fuel System Components With Torque Specification
G10227339Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
