Removal And Installation: Notes

CAUTION:

When removing or installing the manifold absolute pressure sensor, be careful not to apply impact to the sensor.
Do not reuse the manifold absolute pressure sensor that has been dropped.

Pre-removal operation

Air Cleaner Assembly Removal (Refer to AIR CLEANER ).
Brake Booster Vacuum Hose Removal (Refer to MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER ASSEMBLY ).
Throttle Body Assembly Removal (Refer to THROTTLE BODY ASSEMBLY ) < 2.0L ENGINE >.
Throttle Body Assembly Removal (Refer to THROTTLE BODY ASSEMBLY ) < 2.4L ENGINE >.
Fuel Rail and Fuel Injector Assembly Removal (Refer to INJECTOR ) < 2.0L ENGINE >.
Fuel Rail and Fuel Injector Assembly Removal (Refer to INJECTOR ) < 2.4L ENGINE >.
EGR Valve and EGR Valve Stay Removal (Refer to EGR VALVE ).

Post-installation operation

EGR Valve and EGR Valve Stay Installation (Refer to EGR VALVE ).
Fuel Rail and Fuel Injector Assembly Installation (Refer to INJECTOR ) < 2.0L ENGINE >.
Fuel Rail and Fuel Injector Assembly Installation (Refer to INJECTOR ) < 2.4L ENGINE >.
Throttle Body Assembly Installation (Refer to THROTTLE BODY ASSEMBLY ) < 2.0L ENGINE >.
Throttle Body Assembly Installation (Refer to THROTTLE BODY ASSEMBLY ) < 2.4L ENGINE >.
Brake Booster Vacuum Hose Installation (Refer to MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER ASSEMBLY ).
Air Cleaner Assembly Installation (Refer to AIR CLEANER ).

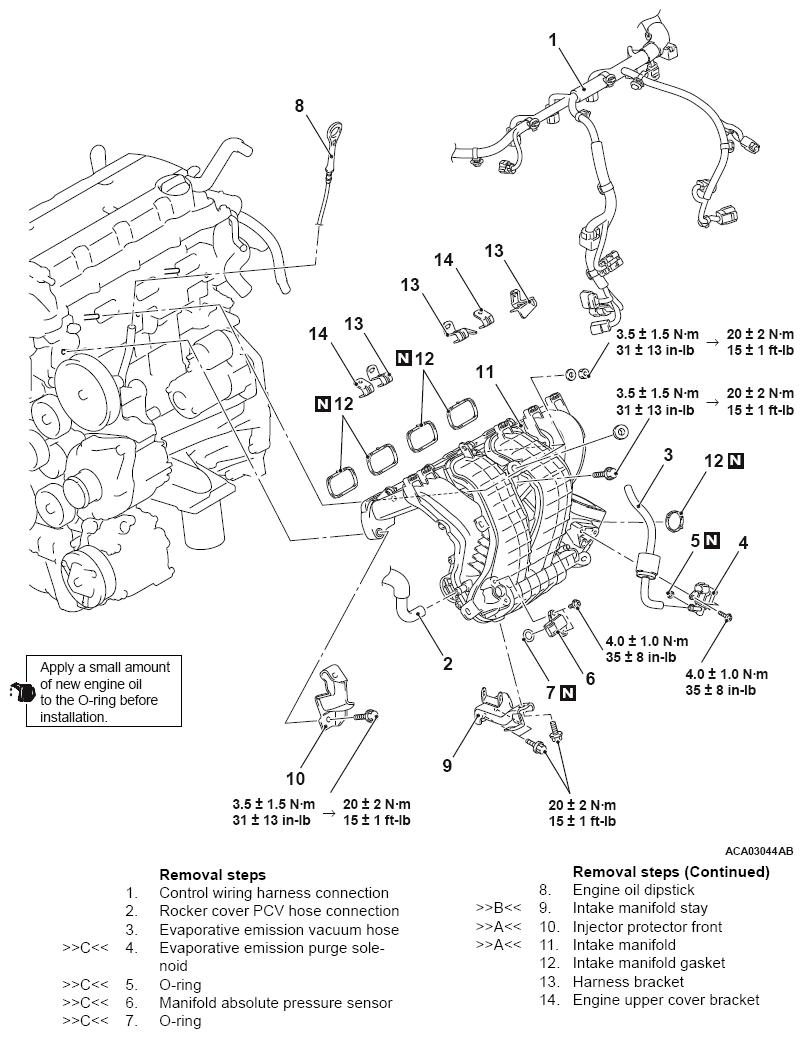

Fig 1: Exploded View Of Intake Manifold With Tightening Torque

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
