Notes
Microphone Unit Removal And Installation: Notes
Pre-removal operation
Removal of front dome light (Refer to
FRONT DOME LIGHT REMOVAL AND INSTALLATION
)
Post-installation operation
Installation of front dome light (Refer to
FRONT DOME LIGHT REMOVAL AND INSTALLATION
)

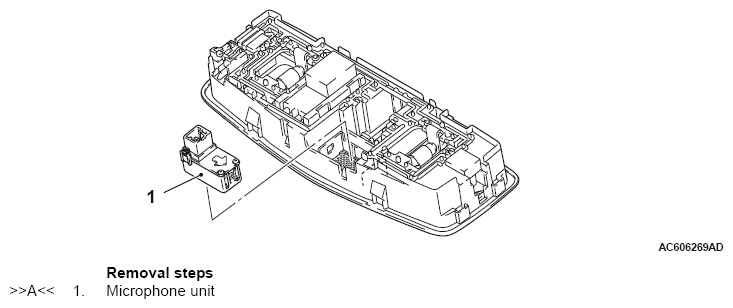

Fig 1: Identifying Microphone Unit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
