RVR ES, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Hands Free Module
>>
General Information
>>
System Block Diagram
System Block Diagram

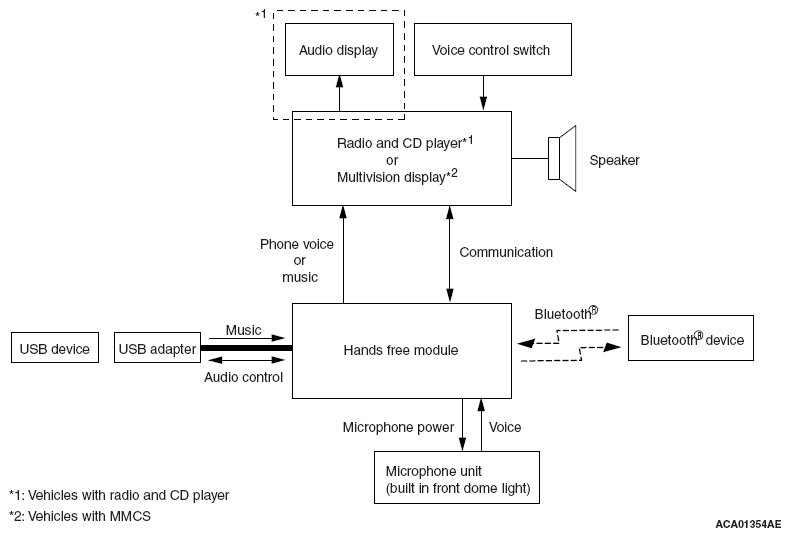

Fig 1: Hands Free Module System Block Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
