Outlander SE, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
CVT -- Outlander
>>
General Information
>>
System Configuration
System Configuration

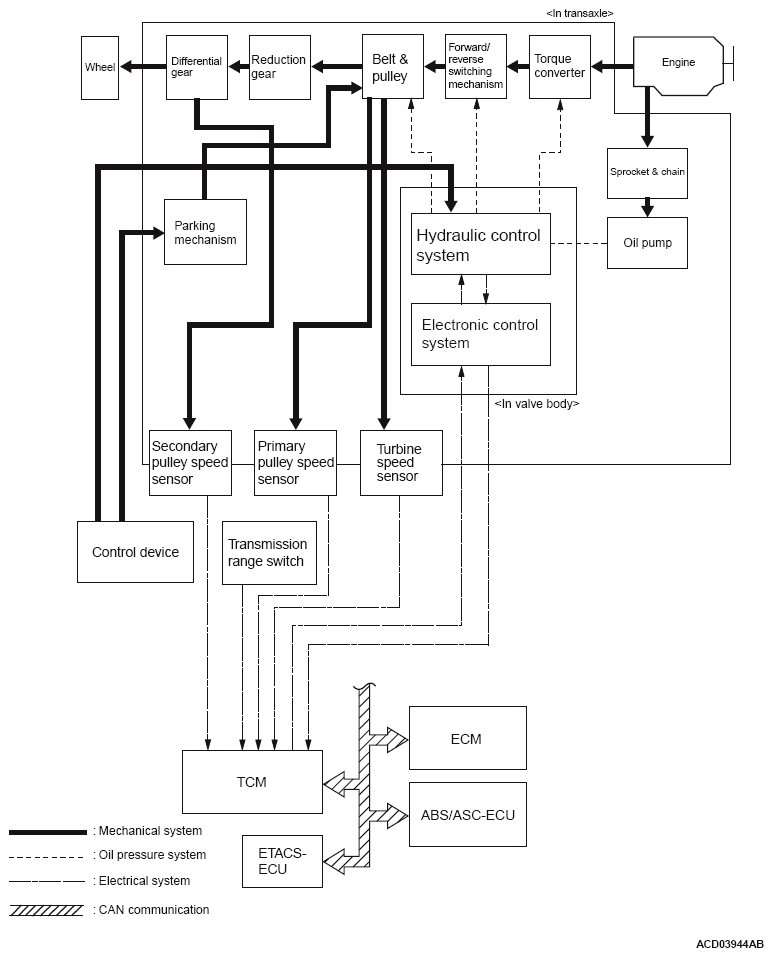

Fig 1: CVT System Configuration
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
