REMOVAL AND INSTALLATION (2.4 L Engine): Notes

Pre-removal Operation  Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Removal (Refer to UNDER COVER ). Generator and Others Belt Removal (Refer to CRANKSHAFT PULLEY ).

Post-installation Operation  Generator and Others Belt Installation (Refer to CRANKSHAFT PULLEY ). Generator and Others Belt Tension Check (Refer to GENERATOR AND OTHERS BELT TENSION CHECK ). Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Installation (Refer to REMOVAL AND INSTALLATION ).

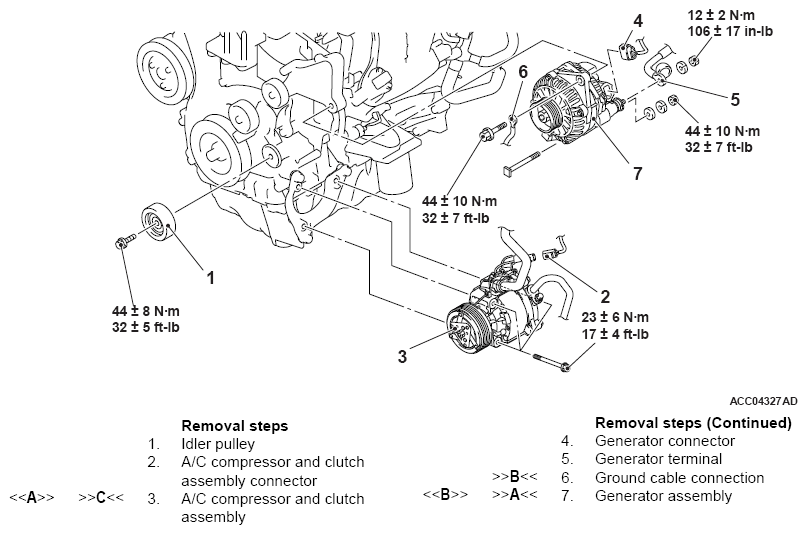

Fig 1: Removing/Installing Engine Electrical Charging System With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
