Removal And Installation: Notes

CAUTION: For the removal of the headlining, refer to SERVICE PRECAUTIONS (Refer to ) and Curtain Air Bag Module (Refer to CURTAIN AIR BAG MODULE(S) ).
Pre-removal and Post-installation Operation
  • Removal and Installation of Front Pillar Trim, Rear scuff plate, Front scuff plate, Cowl side Trim, Upper center Pillar Trim, Lower center Pillar Trim, Front door opening Trim, Rear door opening Trim, Quarter trim Lower, Quarter trim Upper, Rear end Trim, Rear Pillar Trim (Refer to TRIMS  ).
  • Removal and Installation of Rear Seatbelt Outer Assembly (RH or LH) (Refer to REAR SEAT BELT  ).
  • Removal and Installation of Front door Assembly (RH) (Refer to DOOR ASSEMBLY ).
  • Removal and Installation of Instrument panel assembly (Refer to TRIMS  ).
  • Removal and Installation of Front Seat Assembly (Refer to SEAT ASSEMBLY  ).
  • Removal and Installation of Parking brake lever assembly (Refer to PARKING BRAKE ASSEMBLY ).
  • Removal and Installation of center flame assembly (Refer to HEATER UNIT AND BLOWER ASSEMBLY ).

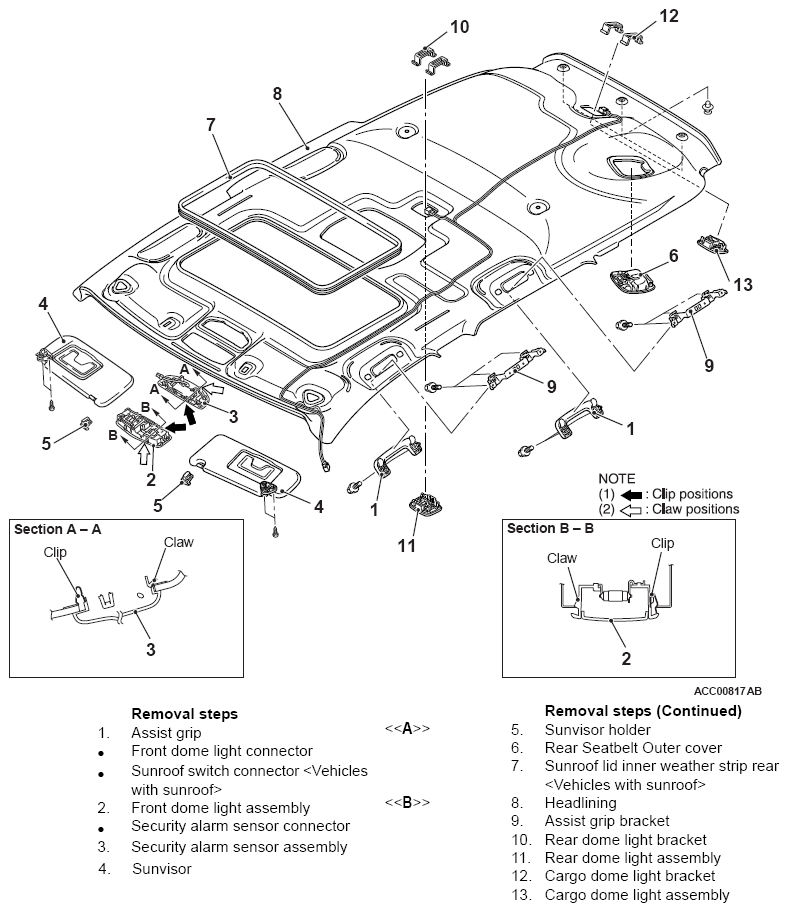

Fig 1: Removing/Installing Headlining Components
G10224978Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

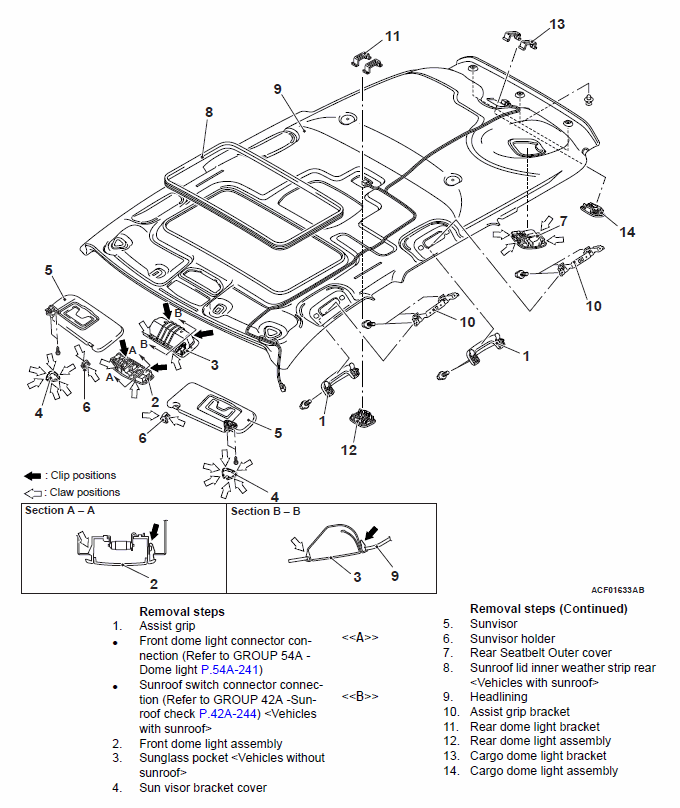

Fig 2: Removing/Installing Headlining Components
G00563091Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
