Home
>>
Mitsubishi
>>
2016
>>
Outlander GT
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Overhaul
>>
Transfer
>>
Disassembly And Assembly
>>
Vehicles with S-AWC
Vehicles with S-AWC

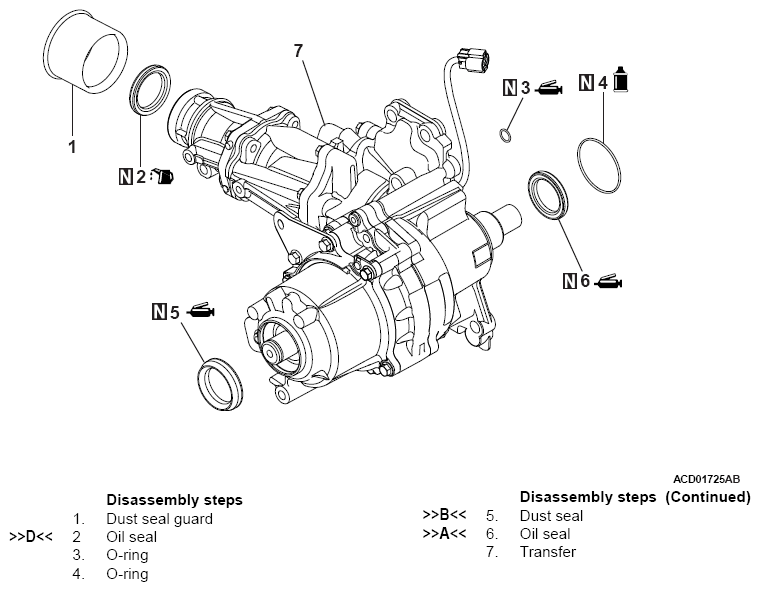

Fig 1: Exploded View Of Transfer With Torque Specification (Vehicles With S-AWC)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
