Oil Seal Installation

CAUTION: Pay attention to the transfer case that can possibly twist when the pin projection is too large.

Adjust the projection allowances of the two pins of the special tool, Oil Seal Installer (MB992154) to be 0.2 ± 0.1 mm (0.007 ± 0.003 in).
NOTE: The two pins are inserted into the special tool, Oil Seal Installer (MB992154). When the oil seal is replaced, the traces are found on the transfer case so that the replacement using the specified special tool can be recognized.
Apply specified grease to the oil seal lip area.
Specified grease: Retinax A

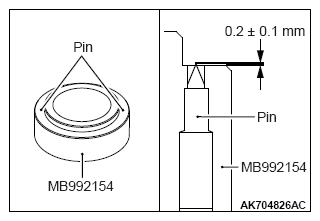

Fig 1: Identifying Oil Seal Installer (MB992154)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Using the special tool MD998812 and MB992154, install the oil seal.

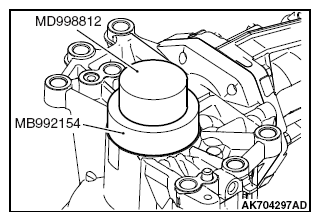

Fig 2: Identifying Special Tool MD998812 And MB992154
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check whether the two traces are found on the transfer case.

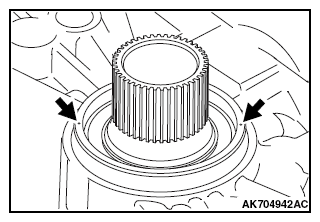

Fig 3: Locating Transfer Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Using the special tool MB992075 and MB992142, install the oil seal.
Apply specified grease to the oil seal lip area.
Specified grease: Retinax A

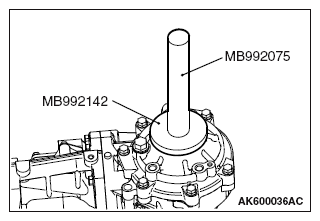

Fig 1: Identifying Special Tool MB992075 And MB992142
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Using the special tool MB990936, install the oil seal.
Apply transfer oil to the lip of oil seal.

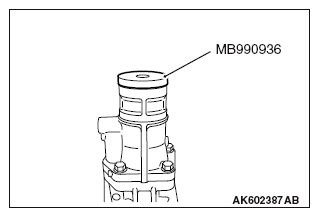

Fig 1: Identifying Special Tool MB990936
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
