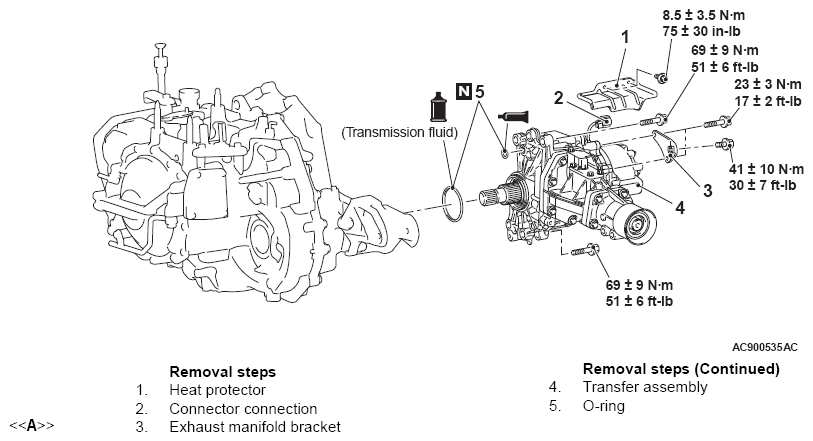

Removal And Installation (Vehicles With S-AWC): Notes
Pre-removal and post-installation operation
- Under cover removal and installation (Refer to REMOVAL AND INSTALLATION .)
- Transmission fluid draining and refilling (Refer to TRANSMISSION FLUID CHANGE .)
- Transfer oil draining and refilling (Refer to TRANSFER OIL CHANGE .)
- Propeller shaft removal and installation (Refer to PROPELLER SHAFT .)
- Front axle crossmember assembly removal and installation (Refer to CROSSMEMBER .)
- Drive shaft assembly (RH) removal and installation (Refer to DRIVE SHAFT ASSEMBLY .)
