Transaxle Control Cable (Transaxle Side) Installation

  1. Move the selector lever and manual control lever to the "N" position.
  2. Use the adjusting nut to tighten the transaxle control cable to the specified torque.

    Tightening torque: 9.5 ± 3.5 N.m (84 ± 30 in-lb)

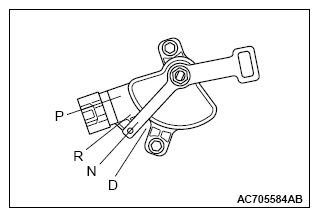

    Fig 1: Identifying Selector Lever And Manual Control Lever Position
    G10223401Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

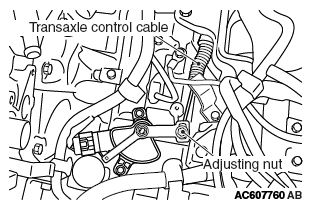

    Fig 2: Identifying Transaxle Control Cable And Adjusting Nut
    G07037155Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
