Removal And Installation

WARNING: This page is about a different car, the 2015 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal and Post-installation Operation

Radiator grill removal and installation (Refer to REMOVAL AND INSTALLATION .)
Engine room under cover front removal and installation (Refer to REMOVAL AND INSTALLATION .)

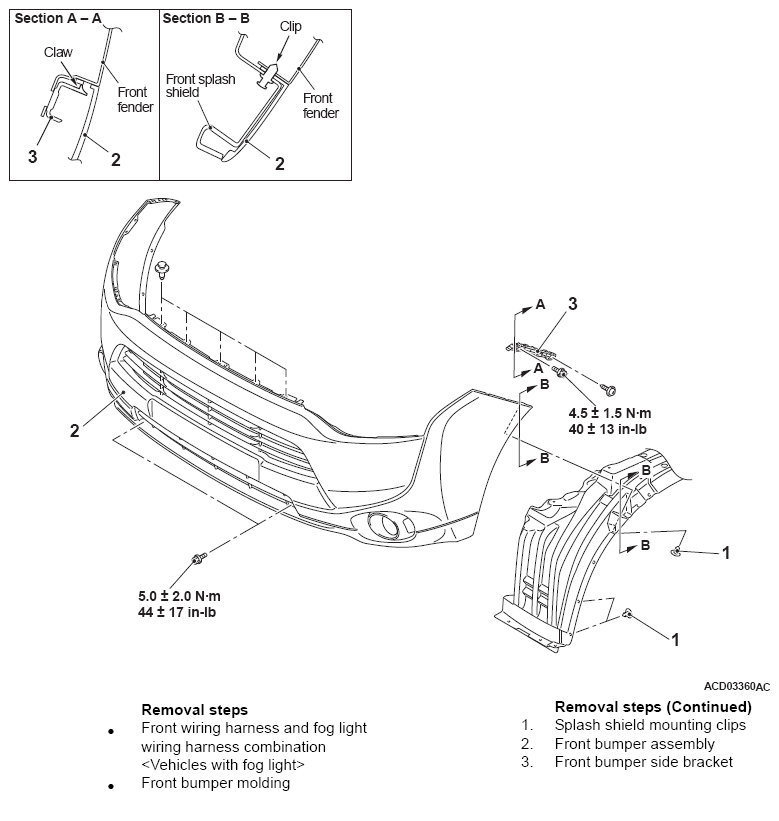

Fig 1: Removing/Installing Front Bumper Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
