Rivets Installation
WARNING: This page is about a different car, the 2015 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

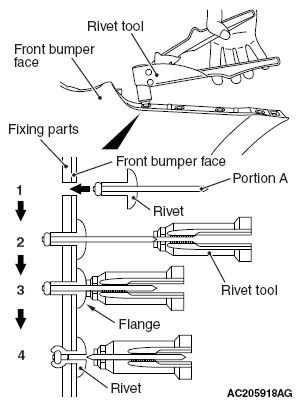

Use a rivet tool shown as in the illustration to connect the parts with rivets by the following procedures:
- Insert the rivet into a corresponding location.
- Set the rivet tool at a portion A of rivet.
- While pushing the flange surface of the rivet onto parts to be fixed with the rivet tool, press the handle of the tool.
- Thin part of portion A of the rivet will be cut off and the part is fixed in position.
