Removal And Installation: Notes

CAUTION: The parts indicated by * are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

Pre-removal Operation
Engine Room Side Cover Removal (Refer to REMOVAL AND INSTALLATION ).

Post-installation Operation

Using Your Fingers, Press the Dust Cover to Check for a Crack or Damage.
Engine Room Side Cover Installation (Refer to REMOVAL AND INSTALLATION ).
Wheel Alignment Check and Adjustment (Refer to FRONT WHEEL ALIGNMENT CHECK AND ADJUSTMENT ).
Check the Beam Direction of the Headlight (Refer to HEADLIGHT AIMING ).

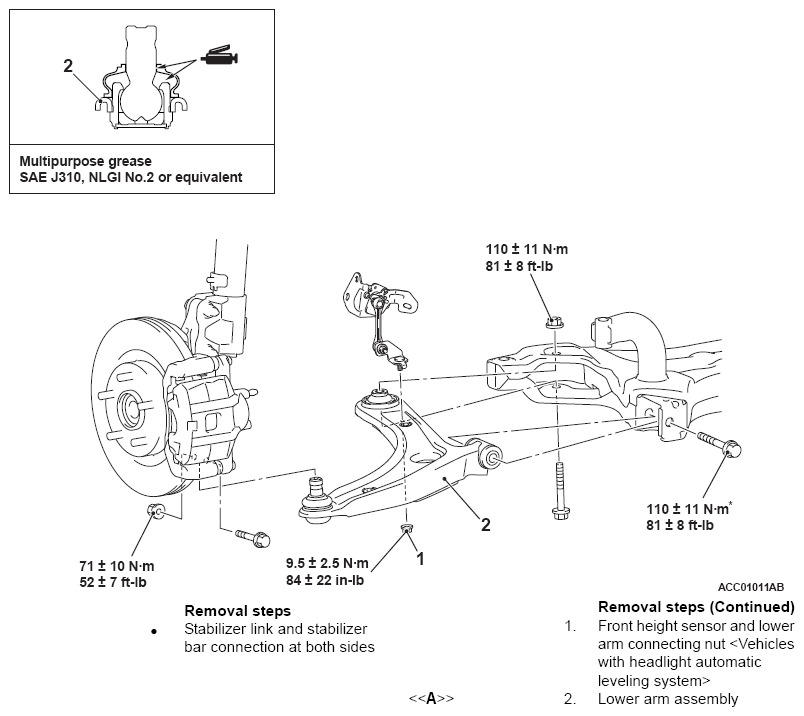

Fig 1: Identifying Front Suspension Lower Arm Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
