REMOVAL AND INSTALLATION (2.4 L Engine)
REMOVAL AND INSTALLATION (2.4 L Engine)

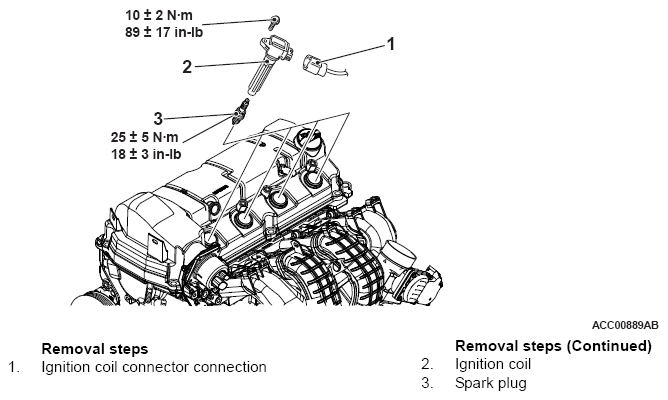

Fig 1: Removing/Installing Ignition Coil Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
