Disassembly And Assembly: AWD

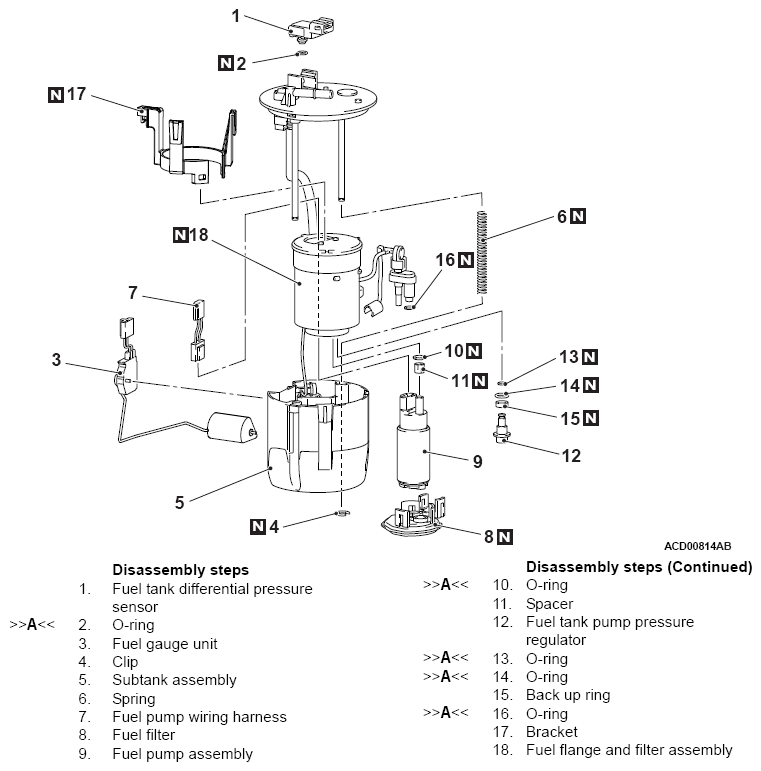

Fig 1: Exploded View Of Fuel Pump Module With Torque Specification (AWD)

G10222990

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
