Engine Mounting Bracket Installation
CAUTION:
Do not remove small tapping screw.

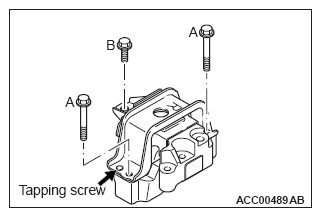

Tighten the engine mounting bracket mounting bolts by the following procedure.
| Order |
Bolt |
Tightening torque |
| 1st |
A |
Approximately 0 - 5.0 N.m (0 - 44 in-lb) |
| 2nd |
B |
50 ± 5 N.m (37 ± 3 ft-lb) |
| 3rd |
A |
50 ± 5 N.m (37 ± 3 ft-lb) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
