Home
>>
Mitsubishi
>>
2016
>>
Outlander ES
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Mechanical
>>
Power Plant Mount
>>
Engine Mounting
>>
Removal And Installation
>>
3.0 L Engine
3.0 L Engine

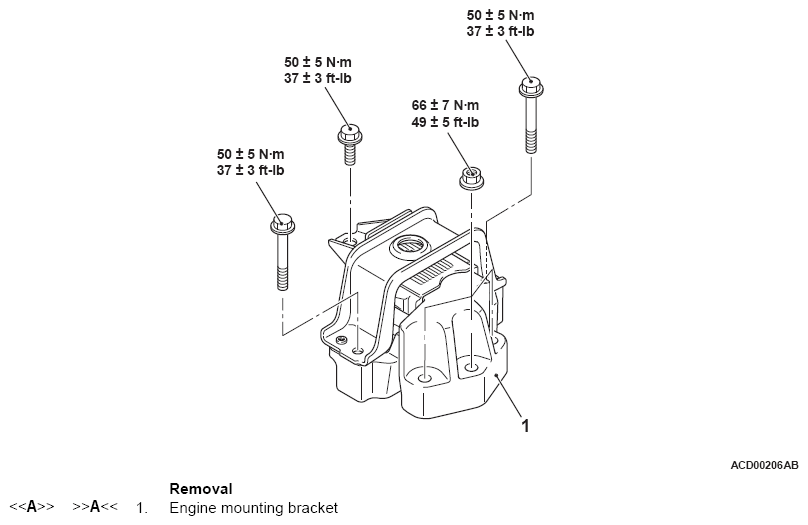

Fig 1: Identifying Engine Mounting Bracket Bolts With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
