2.4 L Engine
2.4 L Engine
Pre-removal Operation
Valve lift-ECU Removal (Refer to
VALVE LIFT-ECU
).
Post-installation Operation
Valve lift-ECU Installation (Refer to
VALVE LIFT-ECU
).

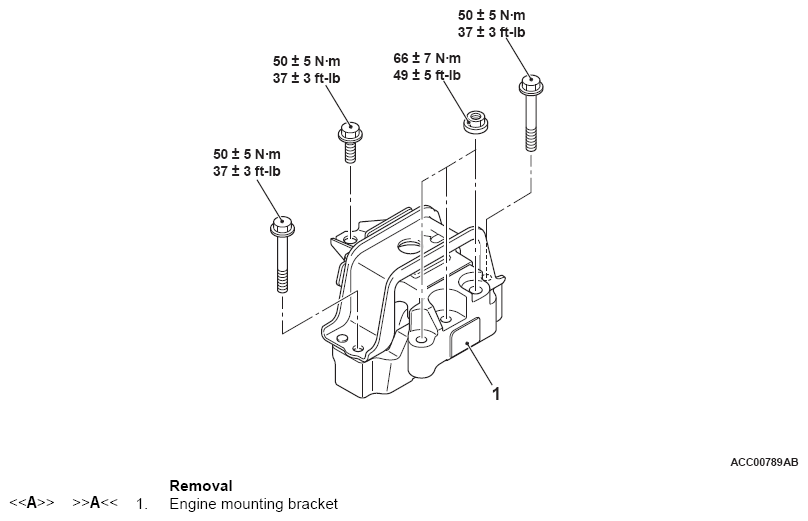

Fig 1: Identifying Engine Mounting Bracket Bolts With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
