Removal And Installation: Notes

CAUTION:

Before removing the driver's air bag module and steering wheel assembly, always refer to SERVICE PRECAUTIONS DRIVER'S AIR BAG MODULE AND CLOCK SPRING . Also, set the front wheels so that they are facing straight forward, and remove the ignition key. If you fail to do this, the SRS clock spring will be damaged, causing the SRS (air bag) to be inoperative and serious injury.
The parts indicated by * are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION ).

Pre-removal Operation

Steering Wheel Assembly Removal (Refer to DRIVER'S AIR BAG MODULE AND CLOCK SPRING ).
Engine Roll Stopper Rod Assembly Removal (Refer to ENGINE ROLL STOPPER ROD ).
Lower Arm Assembly Removal (Refer to LOWER ARM ).
Front Floor Backbone Brace Removal (Refer to LOOSE PANEL )

Post-installation Operation

Front Floor Backbone Brace Installation (Refer to LOOSE PANEL )
Lower Arm Assembly Installation (Refer to LOWER ARM ).
Engine Roll Rod Assembly Installation (Refer to ENGINE ROLL STOPPER ROD ).
Steering Wheel Assembly Installation (Refer to DRIVER'S AIR BAG MODULE AND CLOCK SPRING ).
Checking Steering Wheel Position with Wheels Straight Ahead.
Wheel Alignment Check and Adjustment (Refer to ON-VEHICLE SERVICE - FRONT WHEEL ALIGNMENT CHECK AND ADJUSTMENT ).

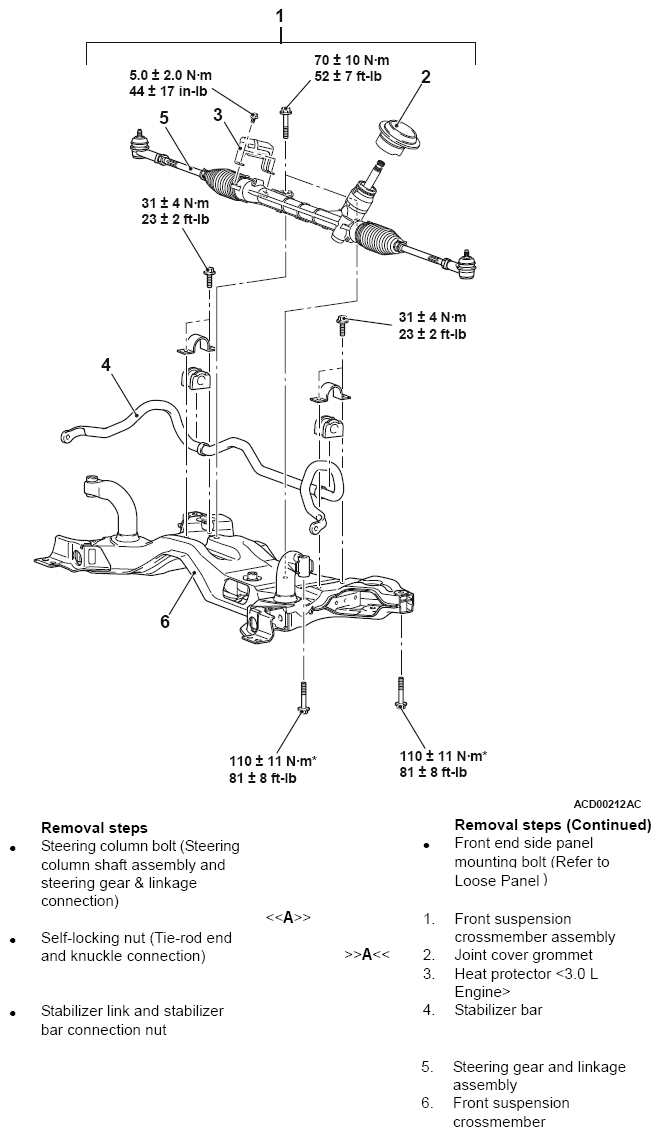

Fig 1: Identifying Power Plant Mount Crossmember Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
